原创 Ace人生 2025-05-05 15:08 美国
如何让AI解读代码库？
0. 为何要写这篇续作？📝
之前在文章【AI启示录】2025 w15: Pocket Flow - 如何从0开始实现Agentic Flow中，我拆解了 PocketFlow 的极简哲学，并聊到 Agentic Coding 如何让“人类构思-AI 落地”成为现实。
这次直奔硬核：基于PocketFlow 打造一台能“吃掉” GitHub 仓库并自动生成新手友好教程的 AI 机器——AI Codebase Knowledge Builder（AI代码库解读助手）。它的完整开发流程由 Zachary Huang 在最新文章里手把手拆解，本文结合实践给出最小可行落地方案。🚀
文章：https://zacharyhuang.substack.com/p/ai-codebase-knowledge-builder-full
Github：https://github.com/The-Pocket/PocketFlow-Tutorial-Codebase-Knowledge
1. AI代码库解读助手：需求痛点 🔥
在面对新代码库时，开发者常遇到以下挑战：
AI代码库解读助手 的核心任务就是将这些难点流水线化，构建一种“AI 生成文档”的范式，让任何人都能从一个陌生代码库中快速获得结构清晰、逻辑递进的教学型文档。📘
2. AI代码库解读助手：总览🦅

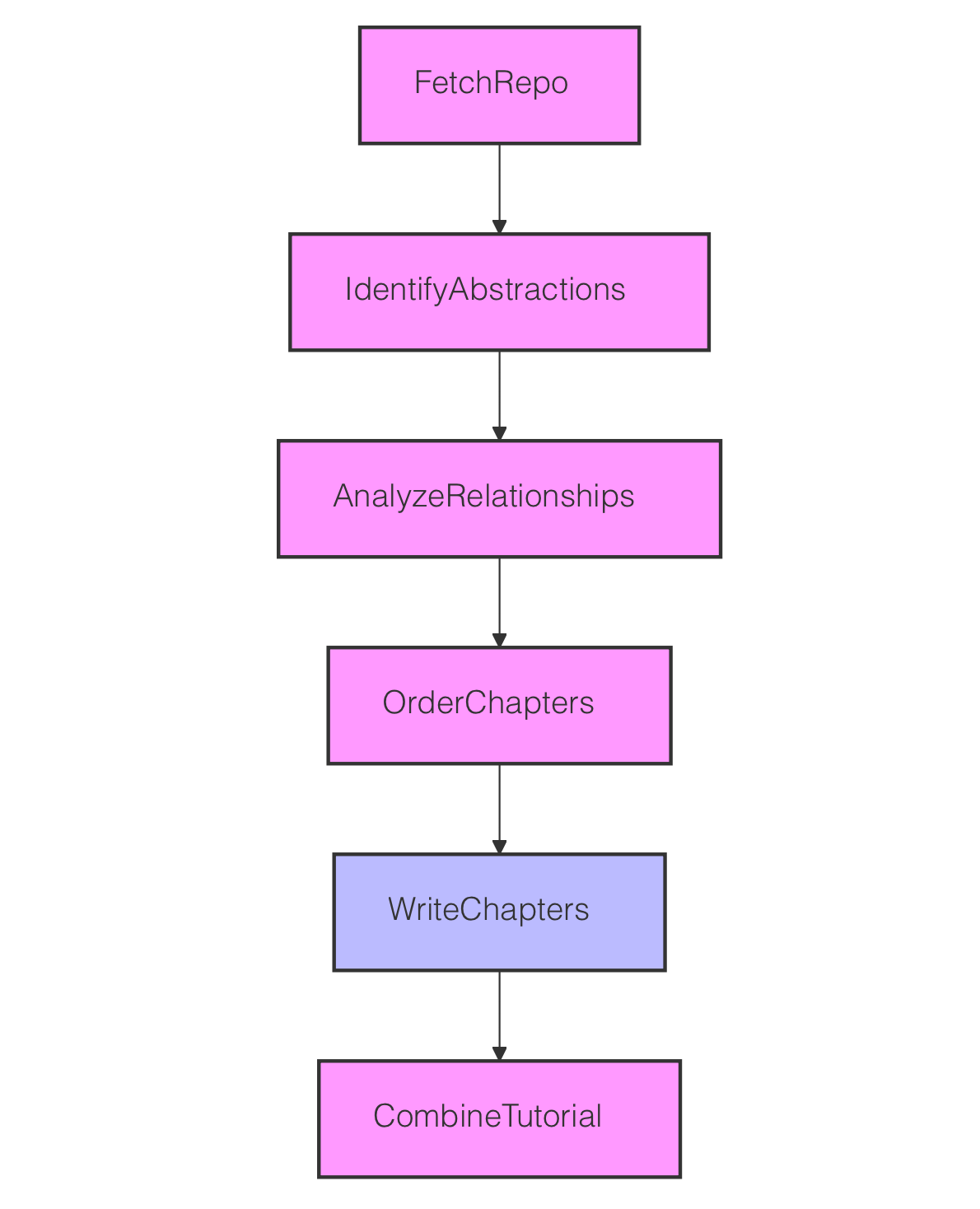

整个教程生成任务被分解为 6 个串联步骤，每个步骤职责单一：
该设计基于两种模式：
3. Zoom-in 🔍：六大 Node 源码精讲 + 实现要点
3.1 FetchRepo — 获取源代码 📦
实现要点：
shared["files"] = [(file_path, file_content), ...]
3.2 IdentifyAbstractions — 抽象识别器 🧭
实现要点：
shared["abstractions"] = [
{"name": ..., "description": ..., "files": [0, 3]},
...
]
3.3 AnalyzeRelationships — 关系构图器 🔗
实现要点：
shared["relationships"] = {
"summary": "项目整体功能描述...",
"details": [
{"from": 0, "to": 1, "label": "使用"},
{"from": 2, "to": 0, "label": "配置"}
]
}
3.4 OrderChapters — 教学排序器 🗂️
实现要点：
shared["chapter_order"] = [2, 0, 1, 3]
3.5 WriteChapters — 章节写作 ✍️（BatchNode）
实现要点：
shared["chapters"] = [
"# 第1章：配置管理\n\n配置管理是...",
"# 第2章：爬虫引擎\n\n爬虫引擎是..."
]
3.6 CombineTutorial — 教程装订 📚
实现要点：
output/project_name/ 目录shared["final_output_dir"] = "output/project_name"
4. Prompt —— 如何指挥AI 干活 🤖
以下为各 Node 所使用的详细 Prompt 模板，从设计意图、结构格式到内容生成方式，帮助你理解 AI 是如何一步步完成任务的。
4.1 IdentifyAbstractions Prompt
For the project `{project_name}`:
Codebase Context:
{context}
{language_instruction}Analyze the codebase context.
Identify the top 5-10 core most important abstractions to help those new to the codebase.
For each abstraction, provide:
1. A concise `name`{name_lang_hint}.
2. A beginner-friendly `description` explaining what it is with a simple analogy, in around 100 words{desc_lang_hint}.
3. A list of relevant `file_indices` (integers) using the format `idx # path/comment`.
List of file indices and paths present in the context:
{file_listing_for_prompt}
Format the output as a YAML list of dictionaries:
```yaml
- name: |
Query Processing{name_lang_hint}
description: |
Explains what the abstraction does.
It's like a central dispatcher routing requests.{desc_lang_hint}
file_indices:
- 0 # path/to/file1.py
- 3 # path/to/related.py
- name: |
Query Optimization{name_lang_hint}
description: |
Another core concept, similar to a blueprint for objects.{desc_lang_hint}
file_indices:
- 5 # path/to/another.js
# ... up to 10 abstractions
```
4.2 AnalyzeRelationships Prompt
Based on the following abstractions and relevant code snippets from the project `{project_name}`:
Context (Abstractions, Descriptions, Code):
{context}
{language_instruction}Please provide:
1. A high-level `summary` of the project's main purpose and functionality in a few beginner-friendly sentences{lang_hint}.
2. A list (`relationships`) describing the key interactions between these abstractions:
- `from_abstraction`
- `to_abstraction`
- `label` (few words){lang_hint}
Format the output as YAML:
```yaml
summary: |
A brief, simple explanation of the project{lang_hint}.
Can span multiple lines with **bold** and *italic* for emphasis.
relationships:
- from_abstraction: 0 # AbstractionName1
to_abstraction: 1 # AbstractionName2
label: "Manages"{lang_hint}
- from_abstraction: 2 # AbstractionName3
to_abstraction: 0 # AbstractionName1
label: "Provides config"{lang_hint}
# ... other relationships
```
Now, provide the YAML output:
4.3 OrderChapters Prompt
Given the following project abstractions and their relationships for the project ```` {project_name} ````:
Abstractions (Index # Name){list_lang_note}:
{abstraction_listing}
Context about relationships and project summary:
{context}
If you are going to make a tutorial for ```` {project_name} ````, what is the best order to explain these abstractions, from first to last?
Ideally, first explain those that are the most important or foundational, perhaps user-facing concepts or entry points. Then move to more detailed, lower-level implementation details or supporting concepts.
Output the ordered list of abstraction indices, including the name in a comment for clarity. Use the format `idx # AbstractionName`.
```yaml
- 2 # FoundationalConcept
- 0 # CoreClassA
- 1 # CoreClassB (uses CoreClassA)
- ...
```
Now, provide the YAML output:
4.4 WriteChapters Prompt
{language_instruction}Write a very beginner-friendly tutorial chapter (in Markdown format) for the project `{project_name}` about the concept: "{abstraction_name}". This is Chapter {chapter_num}.
Concept Details{concept_details_note}:
- Name: {abstraction_name}
- Description:
{abstraction_description}
Complete Tutorial Structure{structure_note}:
{item["full_chapter_listing"]}
Context from previous chapters{prev_summary_note}:
{previous_chapters_summary if previous_chapters_summary else "This is the first chapter."}
Relevant Code Snippets (Code itself remains unchanged):
{file_context_str if file_context_str else "No specific code snippets provided for this abstraction."}
Instructions for the chapter (Generate content in {language.capitalize()} unless specified otherwise):
- Start with a clear heading (e.g., `# Chapter {chapter_num}: {abstraction_name}`). Use the provided concept name.
- If this is not the first chapter, begin with a brief transition from the previous chapter{instruction_lang_note}, referencing it with a proper Markdown link using its name{link_lang_note}.
- Begin with a high-level motivation explaining what problem this abstraction solves{instruction_lang_note}. Start with a central use case as a concrete example. The whole chapter should guide the reader to understand how to solve this use case. Make it very minimal and friendly to beginners.
- If the abstraction is complex, break it down into key concepts. Explain each concept one-by-one in a very beginner-friendly way{instruction_lang_note}.
- Explain how to use this abstraction to solve the use case{instruction_lang_note}. Give example inputs and outputs for code snippets (if the output isn't values, describe at a high level what will happen{instruction_lang_note}).
- Each code block should be BELOW 20 lines! If longer code blocks are needed, break them down into smaller pieces and walk through them one-by-one. Aggresively simplify the code to make it minimal. Use comments{code_comment_note} to skip non-important implementation details. Each code block should have a beginner friendly explanation right after it{instruction_lang_note}.
- Describe the internal implementation to help understand what's under the hood{instruction_lang_note}. First provide a non-code or code-light walkthrough on what happens step-by-step when the abstraction is called{instruction_lang_note}. It's recommended to use a simple sequenceDiagram with a dummy example - keep it minimal with at most 5 participants to ensure clarity. If participant name has space, use: `participant QP as Query Processing`. {mermaid_lang_note}.
- Then dive deeper into code for the internal implementation with references to files. Provide example code blocks, but make them similarly simple and beginner-friendly. Explain{instruction_lang_note}.
- IMPORTANT: When you need to refer to other core abstractions covered in other chapters, ALWAYS use proper Markdown links like this: [Chapter Title](filename.md). Use the Complete Tutorial Structure above to find the correct filename and the chapter title{link_lang_note}. Translate the surrounding text.
- Use mermaid diagrams to illustrate complex concepts (```mermaid``` format). {mermaid_lang_note}.
- Heavily use analogies and examples throughout{instruction_lang_note} to help beginners understand.
- End the chapter with a brief conclusion that summarizes what was learned{instruction_lang_note} and provides a transition to the next chapter{instruction_lang_note}. If there is a next chapter, use a proper Markdown link: [Next Chapter Title](next_chapter_filename){link_lang_note}.
- Ensure the tone is welcoming and easy for a newcomer to understand{tone_note}.
- Output *only* the Markdown content for this chapter.
Now, directly provide a super beginner-friendly Markdown output (DON'T need ```markdown``` tags):

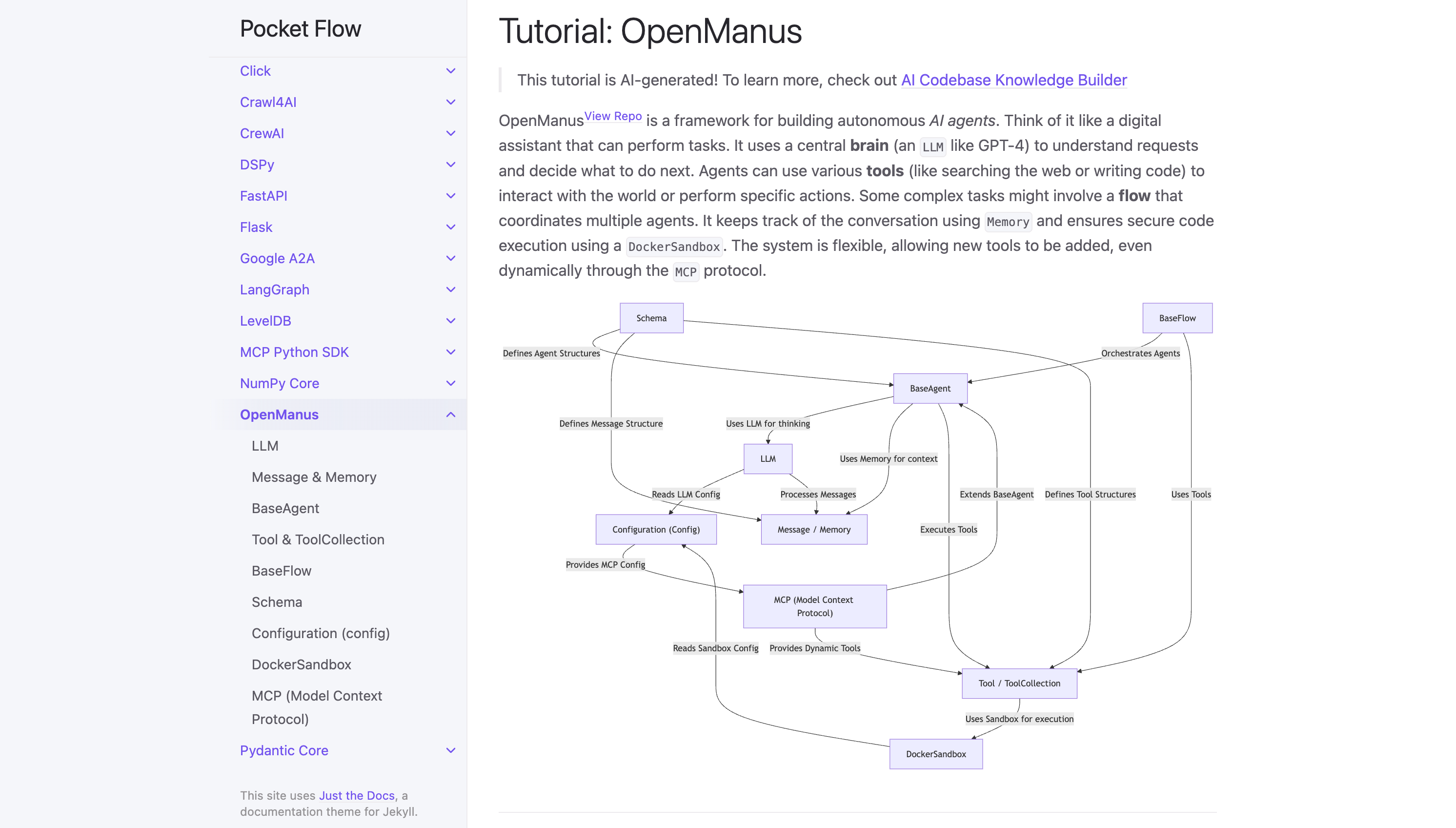

5. 示例项目：OpenManus

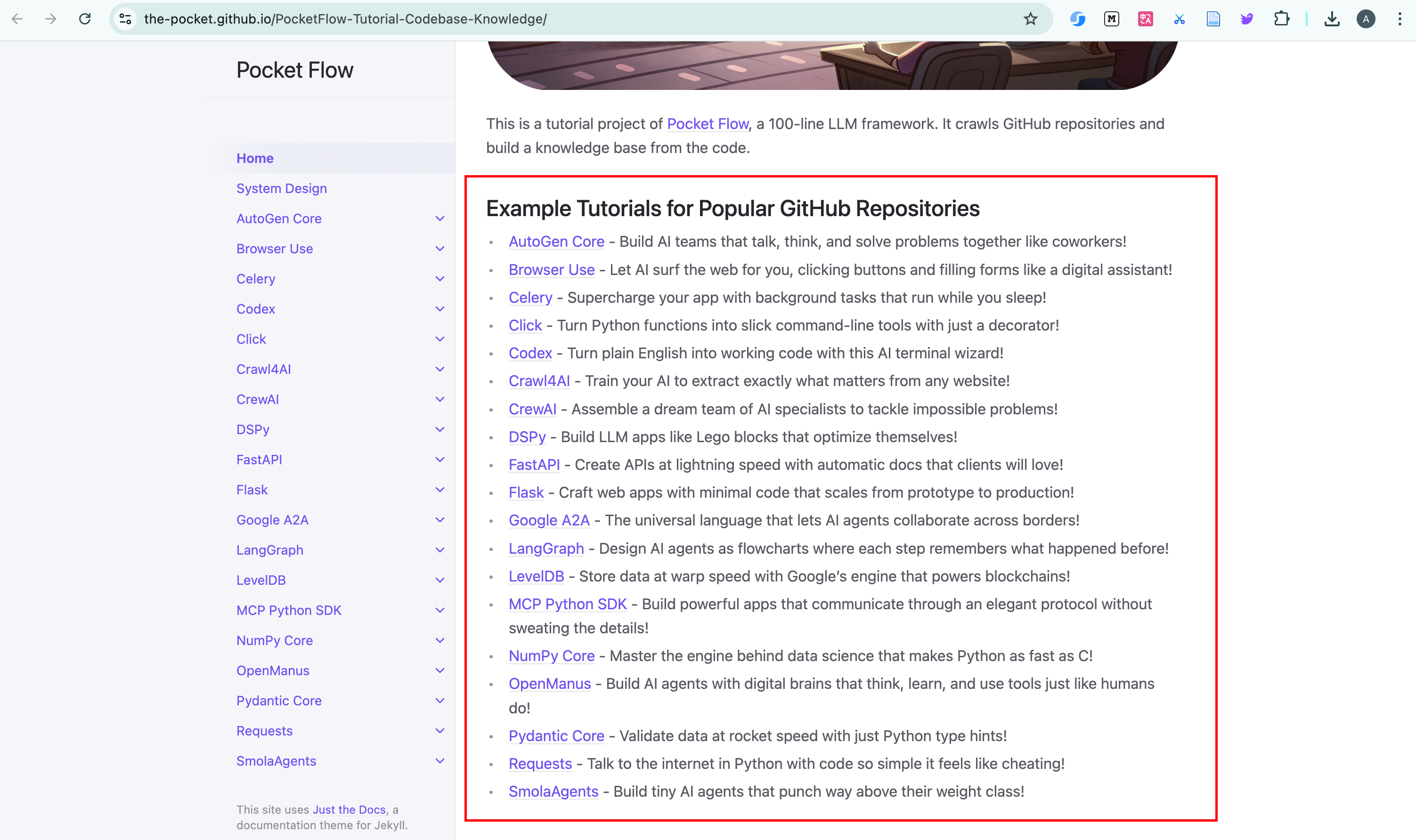

Tutorial-Codebase-Knowledge解析了一系列知名的开源项目（包括AutoGen、CrewAI、FastAPI、MCP、OpenManus等），作为demo，让我们对AI代码库解读助手的能力有直观的感受：
https://the-pocket.github.io/PocketFlow-Tutorial-Codebase-Knowledge/

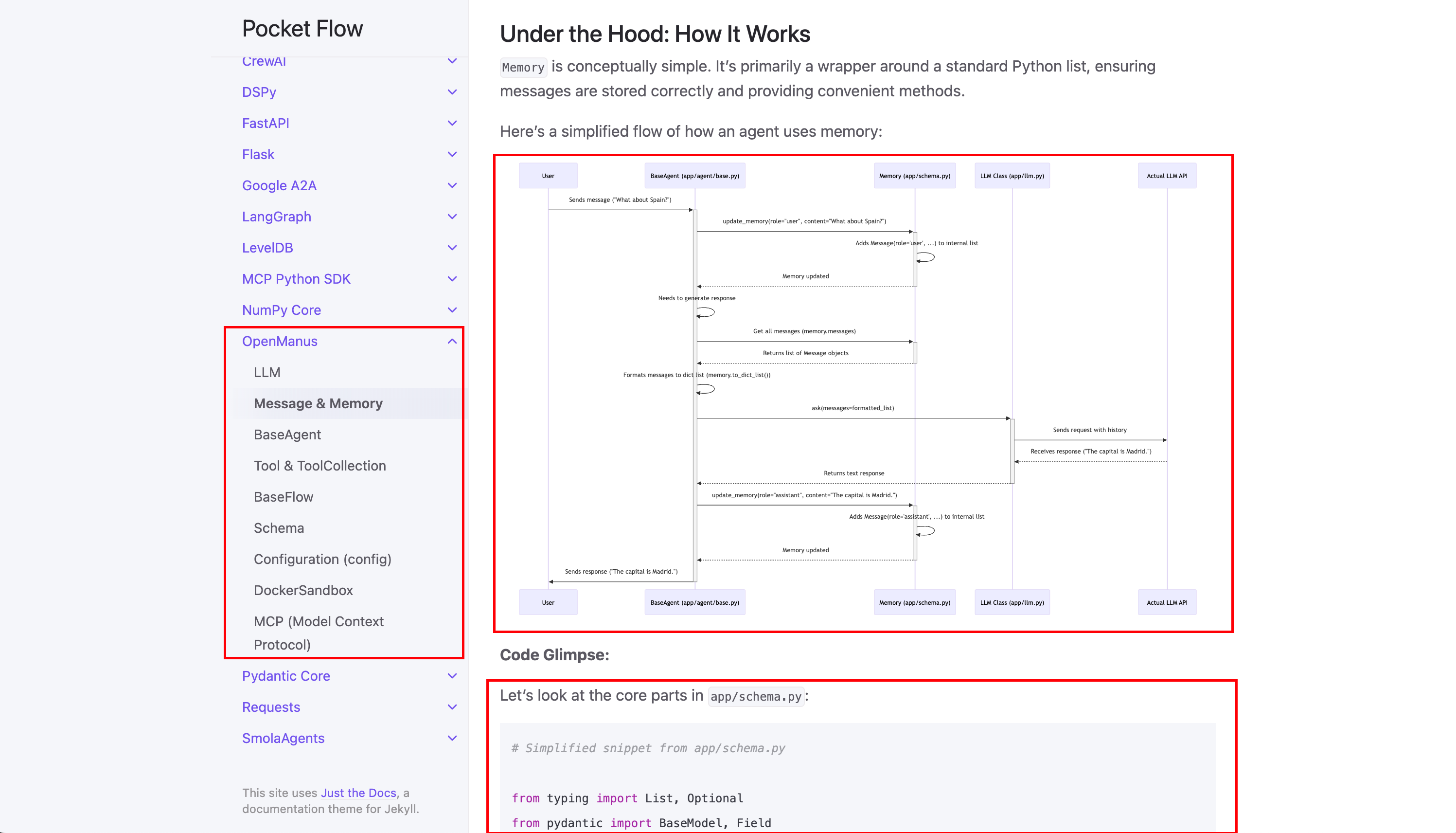

之前我们写过【AI启示录】2025 w10：读OpenManus代码，品AI Agent系统来剖析OpenManus的代码，这次我们可以对照着看看AI分析的结果：
AI除了给出整体的框架，还给出了每个模块的工作原理、实现方式和代码细节。有整体，有细节，非常赞！
6. 限制与展望 🔭
当前限制
技术限制：
功能限制：
未来展望
可以设想的技术增强方向：
可以设想的系统能力拓展：
10. 小结 🎁
AI Codebase Knowledge Builder（AI代码库解读助手）代表了一种新范式：
将大型代码库结构 → 分析 → 教程化，变成一条自动化流水线。它让文档不再依赖“懂代码 + 会写作”的少数人，而是任何人都能借助 AI 来理解、解释和传授。
它的价值，在于：
它的背后哲学是：
下一步，不妨把 AI代码库解读助手 接入你们自己的 Repo，每次 Push 自动生成新手教程，让文档成为代码的一部分。
