本文详细介绍了LangGraph框架如何通过“人机交互”（HITL）模式，在人工智能工作流程中引入人工监督和决策点。通过设置断点和检查点，代理能在关键时刻暂停，请求用户反馈并调整行为，从而提高在敏感或不确定场景下的准确性和安全性。文章通过多个Python代码示例，展示了如何利用LangGraph实现这一功能，涵盖了从简单的流程控制到复杂的金融股票交易决策，以及内容审核和数据删除等实际应用场景，为开发者提供了构建更可靠、更可控AI系统的有效方法。

🎯 **HITL核心概念与应用**：人机交互（HITL）允许AI代理在关键节点暂停，请求人工监督和反馈，然后根据反馈调整其行为。这对于处理潜在错误、敏感操作或结果不确定的场景至关重要，例如金融交易审批或敏感数据处理，从而提升AI系统的安全性和可靠性。

🚦 **LangGraph中的断点与中断机制**：LangGraph通过`interrupt_before`参数允许在特定节点执行前中断流程。这使得用户可以控制AI代理的执行路径，例如在执行一项敏感操作（如金融交易或内容发布）前，暂停并等待用户批准，提供了精细化的流程控制能力。

🔄 **状态管理与修改**：在中断点，用户不仅可以决定是否继续，还可以修改AI的状态。这通过`graph.update_state()`方法实现，允许在流程继续之前更新数据，例如修改草稿内容或调整交易参数，使AI系统更具灵活性和适应性。

🛠️ **集成工具与ReAct代理**：LangGraph能够无缝集成工具（如Finnhub API）并与ReAct代理协同工作。通过将工具调用设置为中断点，可以实现人机协同的决策过程，例如在代理查询股票价格后，等待用户确认是否购买，将AI的自动化能力与人类的判断力相结合。

🔒 **安全性与可控性提升**：通过在AI工作流程中引入人工干预点，HITL模式显著增强了系统的安全性和可控性。无论是审核内容、确认交易还是删除数据，用户都能在关键时刻介入，防止不当操作，确保AI系统的行为符合预期和伦理规范。

前言

人机交互 Human in the loop HITL，简称HITL

涉及人工智能工作流程中的人工监督，使代理能够在关键点暂停、寻求反馈并相应地调整其行为。

这在可能出现错误、敏感作或不确定结果的情况下特别有用。例如，代理在执行金融交易、完成报告或与敏感数据交互之前可能需要人工批准

核心概念

断点检查点状态编辑

示例1 断点的示例

import osimport randomimport subprocessimport sysfrom typing import TypedDictfrom dotenv import load_dotenvfrom langchain_core.runnables.graph import MermaidDrawMethodfrom langchain_openai import ChatOpenAIfrom langgraph.checkpoint.memory import MemorySaverfrom langgraph.graph import StateGraph, START, ENDload_dotenv()model = ChatOpenAI(model="qwen-max",                   base_url=os.getenv("BASE_URL"),                   api_key=os.getenv("OPENAI_API_KEY"),                   streaming=True)def display_graph(graph, output_folder="output", ):    # Code to visualise the graph, we will use this in all lessons    mermaid_png = graph.get_graph(xray=1).draw_mermaid_png(        draw_method=MermaidDrawMethod.API    )    # Create output folder if it doesn't exist    output_folder = "."    os.makedirs(output_folder, exist_ok=True)    filename = os.path.join(output_folder, f"graph_{random.randint(1, 100000)}.png")    with open(filename, 'wb') as f:        f.write(mermaid_png)    if sys.platform.startswith('darwin'):        subprocess.call(('open', filename))    elif sys.platform.startswith('linux'):        subprocess.call(('xdg-open', filename))    elif sys.platform.startswith('win'):        os.startfile(filename)#class State(TypedDict):    input: strdef step_1(state: State):    print('--- Step 1 ---')    return statedef step_2(state: State):    print('--- Step 2 ---')    return statebuilder = StateGraph(State)builder.add_node('step_1', step_1)builder.add_node('step_2', step_2)builder.add_edge(START, 'step_1')builder.add_edge('step_1', 'step_2')builder.add_edge('step_2', END)# Set up memory and breakpointsmemory = MemorySaver()graph = builder.compile(checkpointer=memory, interrupt_before=['step_2'])display_graph(graph)# 执行config = {'configurable': {'thread_id': 'thread-1'}}initial_input = {'input': 'Hello, LangGraph!'}thread = {'configurable': {'thread_id': '1'}}for event in graph.stream(initial_input, thread, stream_mode='values'):    print(event)#     接收用户输入并继续user_approval = input('Do you approve to continue to Step 2? (yes/no): ')if user_approval.lower() == 'yes':    for event in graph.stream(None, thread, stream_mode='values'):        print(event)    else:        print('Execution halted by user.')

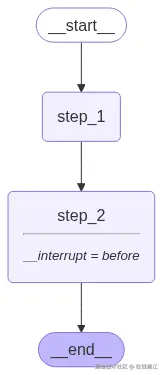

输出图为

输入yes的

{'input': 'Hello, LangGraph!'}--- Step 1 ---{'input': 'Hello, LangGraph!'}Do you approve to continue to Step 2? (yes/no): yes{'input': 'Hello, LangGraph!'}--- Step 2 ---{'input': 'Hello, LangGraph!'}Execution halted by user.

输入no的

{'input': 'Hello, LangGraph!'}--- Step 1 ---{'input': 'Hello, LangGraph!'}Do you approve to continue to Step 2? (yes/no): no

可以看到输入yes的继续执行第二步了。

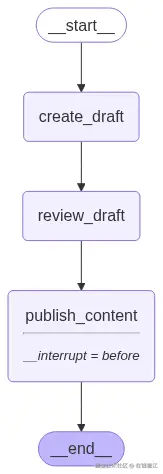

示例 2：内容审核的实际示例

import osimport randomimport subprocessimport sysfrom typing import TypedDictfrom dotenv import load_dotenvfrom langchain_core.runnables.graph import MermaidDrawMethodfrom langchain_openai import ChatOpenAIfrom langgraph.checkpoint.memory import MemorySaverfrom langgraph.graph import StateGraph, START, ENDload_dotenv()llm = ChatOpenAI(model="qwen-max",                 base_url=os.getenv("BASE_URL"),                 api_key=os.getenv("OPENAI_API_KEY"),                 streaming=True)def display_graph(graph, output_folder="output", ):    # Code to visualise the graph, we will use this in all lessons    mermaid_png = graph.get_graph(xray=1).draw_mermaid_png(        draw_method=MermaidDrawMethod.API    )    # Create output folder if it doesn't exist    output_folder = "."    os.makedirs(output_folder, exist_ok=True)    filename = os.path.join(output_folder, f"graph_{random.randint(1, 100000)}.png")    with open(filename, 'wb') as f:        f.write(mermaid_png)    if sys.platform.startswith('darwin'):        subprocess.call(('open', filename))    elif sys.platform.startswith('linux'):        subprocess.call(('xdg-open', filename))    elif sys.platform.startswith('win'):        os.startfile(filename)class State(TypedDict):    input: str    draft_content: strdef create_draft(state: State):    print("--- 生成草稿 ---")    prompt = f"写一个主题是{state['input']}的博客"    response = llm.invoke([{"role": "user", "content": prompt}])    state["draft_content"] = response.content    print(f"草稿内容:{response.content}")    return statedef review_draft(state: State):    print("--- 审核草稿 ---")    return statedef publish_content(state: State):    print("--- 发布内容 ---")    return statebuilder = StateGraph(State)builder.add_node("create_draft", create_draft)builder.add_node("review_draft", review_draft)builder.add_node("publish_content", publish_content)builder.add_edge(START, "create_draft")builder.add_edge("create_draft", "review_draft")builder.add_edge("review_draft", "publish_content")builder.add_edge("publish_content", END)memory = MemorySaver()graph = builder.compile(checkpointer=memory, interrupt_before=["publish_content"])display_graph(graph)config = {"configurable": {"thread_id": "thread-1"}}initial_input = {"input": "AI在现代创作中的重要性"}thread = {"configurable": {"thread_id": "1"}}for event in graph.stream(initial_input, thread, stream_mode="values"):    print(event)user_approval = input("需要发布草稿吗? (yes/no/mod): ")if user_approval.lower() == "yes":    # 继续调用    for event in graph.stream(None, thread, stream_mode="values"):        print(event)elif user_approval.lower() == "mod":    updated_draft = input("请修改草稿内容:\n")    #memory.update({"draft_content": updated_draft})  # Update memory with new content    print("修改完毕")    for event in graph.stream(None, thread, stream_mode="values"):        print(event)else:    print("用户终止")

输出结果

{'input': 'AI在现代创作中的重要性'}--- 生成草稿 ---草稿内容:# AI在现代创作中的重要性 随着科技的不断进步，人工智能（AI）...'}--- 审核草稿 ---{'input': 'AI在现代创作中的重要性', 'draft_content': '# AI在现代创作中的重要性 ...'}需要发布草稿吗? (yes/no/mod): yes{'input': 'AI在现代创作中的重要性', 'draft_content': '# AI在现代创作中的重要性 ...'}--- 发布内容 ---{'input': 'AI在现代创作中的重要性', 'draft_content': '# AI在现代创作中的重要性 ...'}

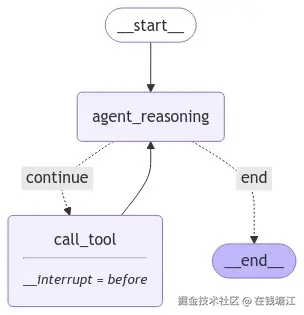

ReAct 代理示例与金融股票购买用例

使用人机交互 （HITL） 架构实现 ReAct 代理，以实现股票购买决策工作流程。代理将使用 Finnhub API 查询实时股票价格，推理是否购买股票，并在继续之前暂停以请求人工批准。

import osimport randomimport subprocessimport sysfrom typing import TypedDictfrom dotenv import load_dotenvfrom langchain_core.runnables.graph import MermaidDrawMethodfrom langchain_openai import ChatOpenAIfrom langgraph.checkpoint.memory import MemorySaverfrom langgraph.graph import StateGraph, START, END, MessagesStatefrom langchain_core.tools import toolfrom langgraph.prebuilt import ToolNodeload_dotenv()llm = ChatOpenAI(model="qwen-max",                 base_url=os.getenv("BASE_URL"),                 api_key=os.getenv("OPENAI_API_KEY"),                 streaming=True)def display_graph(graph, output_folder="output", ):    # Code to visualise the graph, we will use this in all lessons    mermaid_png = graph.get_graph(xray=1).draw_mermaid_png(        draw_method=MermaidDrawMethod.API    )    # Create output folder if it doesn't exist    output_folder = "."    os.makedirs(output_folder, exist_ok=True)    filename = os.path.join(output_folder, f"graph_{random.randint(1, 100000)}.png")    with open(filename, 'wb') as f:        f.write(mermaid_png)    if sys.platform.startswith('darwin'):        subprocess.call(('open', filename))    elif sys.platform.startswith('linux'):        subprocess.call(('xdg-open', filename))    elif sys.platform.startswith('win'):        os.startfile(filename)@tooldef get_stock_price(symbol: str):    """Retrieve the latest stock price for the given symbol."""    # quote = finnhub_client.quote(symbol)    price = random.randint(500, 800)    return f"The current price for {symbol} is ${price}."tools = [get_stock_price]tool_node = ToolNode(tools)model = llm.bind_tools(tools)def agent_reasoning(state):    messages = state["messages"]    response = model.invoke(messages)    return {"messages": [response]}def should_continue(state):    messages = state["messages"]    last_message = messages[-1]    # 没有工具调用就结束    if not last_message.tool_calls:        return "end"    return "continue"workflow = StateGraph(MessagesState)workflow.add_node("agent_reasoning", agent_reasoning)workflow.add_node("call_tool", tool_node)workflow.add_edge(START, "agent_reasoning")workflow.add_conditional_edges(    "agent_reasoning", should_continue,    {        "continue": "call_tool",        "end": END    })# Normal edge: after invoking the tool, return to agent reasoningworkflow.add_edge("call_tool", "agent_reasoning")memory = MemorySaver()app = workflow.compile(checkpointer=memory, interrupt_before=["call_tool"])display_graph(app)initial_input = {"messages": [{"role": "user", "content": "今天应该买AAPL的股票吗?"}]}thread = {"configurable": {"thread_id": "1"}}# Run the agent reasoning step firstfor event in app.stream(initial_input, thread, stream_mode="values"):    print(event)user_approval = input("是否查询AAPL的股价? (yes/no): ")if user_approval.lower() == "yes":    # Continue with tool invocation to get stock price    for event in app.stream(None, thread, stream_mode="values"):        print(event)else:    print("用户终止")

输出结果

{'messages': [HumanMessage(content='今天应该买AAPL的股票吗?', additional_kwargs={}, response_metadata={}, id='1506d0d0-ee04-4245-8c83-09f3e7814918')]}{'messages': [HumanMessage(content='今天应该买AAPL的股票吗?', additional_kwargs={}, response_metadata={}, id='1506d0d0-ee04-4245-8c83-09f3e7814918'), AIMessage(content='决定是否购买AAPL（苹果公司）的股票取决于多种因素，：\n\n此外，获取最新的股票价格信息也可能有助于您的决策过程。我可以通过调用`get_stock_price`函数来帮助您获取AAPL的最新股票价格。让我们来查一下。', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_5b9dcc6901f8422faceb06', 'function': {'arguments': '{"symbol": "AAPL"}', 'name': 'get_stock_price'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--f732f6e9-4c5d-4426-86c4-81b1bb8d03ca-0', tool_calls=[{'name': 'get_stock_price', 'args': {'symbol': 'AAPL'}, 'id': 'call_5b9dcc6901f8422faceb06', 'type': 'tool_call'}])]}是否查询AAPL的股价? (yes/no): yes{'messages': [HumanMessage(content='今天应该买AAPL的股票吗?', additional_kwargs={}, response_metadata={}, id='1506d0d0-ee04-4245-8c83-09f3e7814918'), AIMessage(content='决定是否购买AAPL（苹果公司）的股票取决于多种因素，：\n\n此外，获取最新的股票价格信息也可能有助于您的决策过程。我可以通过调用`get_stock_price`函数来帮助您获取AAPL的最新股票价格。让我们来查一下。', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_5b9dcc6901f8422faceb06', 'function': {'arguments': '{"symbol": "AAPL"}', 'name': 'get_stock_price'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--f732f6e9-4c5d-4426-86c4-81b1bb8d03ca-0', tool_calls=[{'name': 'get_stock_price', 'args': {'symbol': 'AAPL'}, 'id': 'call_5b9dcc6901f8422faceb06', 'type': 'tool_call'}])]}{'messages': [HumanMessage(content='今天应该买AAPL的股票吗?', additional_kwargs={}, response_metadata={}, id='1506d0d0-ee04-4245-8c83-09f3e7814918'), AIMessage(content='决定是否购买AAPL（苹果公司）的股票取决于多种因素，：\n\n此外，获取最新的股票价格信息也可能有助于您的决策过程。我可以通过调用`get_stock_price`函数来帮助您获取AAPL的最新股票价格。让我们来查一下。', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_5b9dcc6901f8422faceb06', 'function': {'arguments': '{"symbol": "AAPL"}', 'name': 'get_stock_price'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--f732f6e9-4c5d-4426-86c4-81b1bb8d03ca-0', tool_calls=[{'name': 'get_stock_price', 'args': {'symbol': 'AAPL'}, 'id': 'call_5b9dcc6901f8422faceb06', 'type': 'tool_call'}]), ToolMessage(content='The current price for AAPL is $517.', name='get_stock_price', id='51f1adeb-c67a-4a75-95eb-c53ff3ce6776', tool_call_id='call_5b9dcc6901f8422faceb06')]}{'messages': [HumanMessage(content='今天应该买AAPL的股票吗?', additional_kwargs={}, response_metadata={}, id='1506d0d0-ee04-4245-8c83-09f3e7814918'), AIMessage(content='决定是否购买AAPL（苹果公司）的股票取决于多种因素，：\n\n此外，获取最新的股票价格信息也可能有助于您的决策过程。我可以通过调用`get_stock_price`函数来帮助您获取AAPL的最新股票价格。让我们来查一下。', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_5b9dcc6901f8422faceb06', 'function': {'arguments': '{"symbol": "AAPL"}', 'name': 'get_stock_price'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--f732f6e9-4c5d-4426-86c4-81b1bb8d03ca-0', tool_calls=[{'name': 'get_stock_price', 'args': {'symbol': 'AAPL'}, 'id': 'call_5b9dcc6901f8422faceb06', 'type': 'tool_call'}]), ToolMessage(content='The current price for AAPL is $517.', name='get_stock_price', id='51f1adeb-c67a-4a75-95eb-c53ff3ce6776', tool_call_id='call_5b9dcc6901f8422faceb06'), AIMessage(content='苹果公司（AAPL）的最新股票价格是 $517。\n\n请记住，这只代表了 AAPL 股票的当前市场价格，并不单独构成买卖建议。您应该结合自己的研究和其他信息来源来决定是否购买。如果您需要进一步的帮助来进行分析或有其他问题，请随时告诉我。', additional_kwargs={}, response_metadata={'finish_reason': 'stop', 'model_name': 'qwen-max'}, id='run--14905aec-befd-4689-a6ba-b7864d64fed7-0')]}

在执行过程中编辑图形状态

在继续之前修改图形状态

from typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaver# Define the state structureclass State(TypedDict):    input: str    modified_input: strdef step_1(state: State):    print(f"Original input: {state['input']}")    return statedef modify_state(state: State):    # Allow the user to modify the state    return statedef step_3(state: State):    print(f"Modified input: {state['modified_input']}")    return statebuilder = StateGraph(State)builder.add_node("step_1", step_1)builder.add_node("modify_state", modify_state)builder.add_node("step_3", step_3)# Define the flowbuilder.add_edge(START, "step_1")builder.add_edge("step_1", "modify_state")builder.add_edge("modify_state", "step_3")builder.add_edge("step_3", END)# Set up memory and breakpointsmemory = MemorySaver()graph = builder.compile(checkpointer=memory, interrupt_before=["modify_state"])initial_input = {"input": "Initial Input"}config = {"configurable": {"thread_id": "thread-1"}}for event in graph.stream(initial_input, config):    print(event)modified_value = input("Enter the modified input: ")graph.update_state(config, {"modified_input": modified_value})# Continue the graph executionfor event in graph.stream(None, config):    print(event)

结果为

Original input: Initial Input{'step_1': {'input': 'Initial Input'}}{'__interrupt__': ()}Enter the modified input: 12322{'modify_state': {'input': 'Initial Input', 'modified_input': '12322'}}Modified input: 12322{'step_3': {'input': 'Initial Input', 'modified_input': '12322'}}

断点的示例

同意金融交易

from typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaverclass State(TypedDict):    amount: floatbuilder = StateGraph(State)def define__transaction(state: State):    print("Defining transaction...")    return statedef verify_transaction(state: State):    print(f"Verifying transaction amount: {state['amount']}")    return statebuilder.add_node("define_transaction", define__transaction)builder.add_node("verify_transaction", verify_transaction)builder.add_edge(START, "define_transaction")builder.add_edge("define_transaction", "verify_transaction")builder.add_edge("verify_transaction", END)graph = builder.compile(    interrupt_before=["verify_transaction"],    checkpointer=MemorySaver())initial_input = {"amount": 1000.0}config = {"configurable": {"thread_id": "thread-1"}}for event in graph.stream(initial_input, config):    print(event)approval = input("Approve this transaction? (yes/no): ")if approval.lower() == "yes":    for event in graph.stream(None, config):        print(event)else:    print("Transaction cancelled.")

输出结果

"""Defining transaction...{'define_transaction': {'amount': 1000.0}}{'__interrupt__': ()}Approve this transaction? (yes/no): yesVerifying transaction amount: 1000.0{'verify_transaction': {'amount': 1000.0}}"""

删除数据确认

import osfrom typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaverclass State(TypedDict):    data: strdef delete_data(state: State):    print(f"Data to be deleted: {state['data']}")    return statebuilder = StateGraph(State)builder.add_node("delete_data", delete_data)builder.add_edge(START, "delete_data")builder.add_edge("delete_data", END)graph = builder.compile(interrupt_before=["delete_data"], checkpointer=MemorySaver())initial_input = {"data": "Sensitive Information"}config = {"configurable": {"thread_id": "thread-1"}}for event in graph.stream(initial_input, config):    print(event)approval = input("Approve data deletion? (yes/no): ")if approval.lower() == "yes":    for event in graph.stream(None, config):        print(event)else:    print("Data deletion cancelled.")

输出结果

"""{'__interrupt__': ()}Approve data deletion? (yes/no): yesData to be deleted: Sensitive Information{'delete_data': {'data': 'Sensitive Information'}}"""

允许tool call

import osfrom typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaverfrom langchain_core.tools import toolclass State(TypedDict):    query: str@tooldef perform_query(query: str):    """:param query: The SQL query to be executed."""    print(f"Performing query: {query}")    return {"query": {query}}def review_query(state: State):    print(f"Reviewing query: {state['query']}")    return statebuilder = StateGraph(State)builder.add_node("perform_query", perform_query)builder.add_node("review_query", review_query)builder.add_edge(START, "review_query")builder.add_edge("review_query", "perform_query")builder.add_edge("perform_query", END)graph = builder.compile(interrupt_before=["perform_query"],                        checkpointer=MemorySaver())initial_input = {"query": "SELECT * FROM users"}config = {"configurable": {"thread_id": "thread-1"}}for event in graph.stream(initial_input, config):    print(event)approval = input("Approve query execution? (yes/no): ")if approval.lower() == "yes":    for event in graph.stream(None, config):        print(event)else:    print("Query execution cancelled.")

输出结果

{'__interrupt__': ()}Approve data deletion? (yes/no): yesData to be deleted: Sensitive Information{'delete_data': {'data': 'Sensitive Information'}}

动态断点

动态断点允许代理根据运行时数据或外部触发器有条件地暂停，从而增加了灵活性。动态断点不是预先定义图形的暂停位置，而是引入了根据特定条件触发暂停的功能。

基于数据阈值的条件暂停

from langgraph.types import interruptimport osfrom typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDclass State(TypedDict):    input: strdef step_with_dynamic_interrupt(state: State):    input_length = len(state["input"])    if input_length > 10:        interrupt(f"Input length {input_length} exceeds threshold of 10.")    return statebuilder = StateGraph(State)builder.add_node("step_with_dynamic_interrupt", step_with_dynamic_interrupt)builder.add_edge(START, "step_with_dynamic_interrupt")builder.add_edge("step_with_dynamic_interrupt", END)graph = builder.compile()initial_input = {"input": "This is a long input"}for event in graph.stream(initial_input):    print(event)

运行结果

当输入长度超过 10 个字符时，工作流会自动暂停

{'__interrupt__': (Interrupt(value='Input length 20 exceeds threshold of 10.', id='cf3c8cd72f33e6120e00b8c619f411ce'),)}

等待用户输入

一些流程中，AI 代理需要人工反馈才能继续。例如客户服务、医疗保健或业务审批流程。

等待用户输入是指人工智能代理在其工作流程中暂停，要求人工澄清或附加信息，然后仅在收到信息后恢复的交互在 LangGraph 中，等待用户输入是使用断点实现的。在断点处，图形暂停执行并等待用户反馈，然后将反馈注入回图形的状态。工作流使用提供的输入从该点恢复。

from typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaverclass State(TypedDict):    input: str    user_feedback: strdef step_1(state: State):    print(f"Step 1: {state['input']}")    return statedef human_feedback(state: State):    print("--- Waiting for human feedback ---")    feedback = input("Please provide your feedback: ")    state['user_feedback'] = feedback    return statedef step_3(state: State):    print(f"Step 3: User feedback received: {state['user_feedback']}")    return statebuilder = StateGraph(State)builder.add_node("step_1", step_1)builder.add_node("human_feedback", human_feedback)builder.add_node("step_3", step_3)builder.add_edge(START, "step_1")builder.add_edge("step_1", "human_feedback")builder.add_edge("human_feedback", "step_3")builder.add_edge("step_3", END)# Set up memory and breakpointsmemory = MemorySaver()graph = builder.compile(checkpointer=memory,                        interrupt_before=["human_feedback"])initial_input = {"input": "Proceed with workflow?"}thread = {"configurable": {"thread_id": "1"}}for event in graph.stream(initial_input, thread, stream_mode="values"):    print(event)user_feedback = input("User feedback: ")graph.update_state(thread, {"user_feedback": user_feedback},                   as_node='human_feedback')for event in graph.stream(None, thread, stream_mode="values"):    print(event)

运行结果

{'input': 'Proceed with workflow?'}Step 1: Proceed with workflow?{'input': 'Proceed with workflow?'}User feedback: 1234{'input': 'Proceed with workflow?', 'user_feedback': '1234'}Step 3: User feedback received: 1234{'input': 'Proceed with workflow?', 'user_feedback': '1234'}

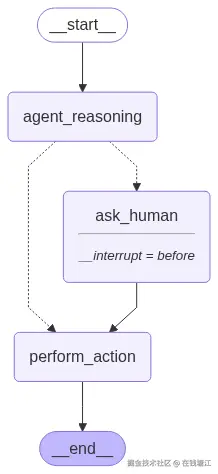

复杂例子

from typing_extensions import TypedDictfrom langgraph.graph import StateGraph, START, ENDfrom langgraph.checkpoint.memory import MemorySaverfrom langchain_core.tools import toolimport osimport randomimport subprocessimport sysfrom typing import TypedDictfrom dotenv import load_dotenvfrom langchain_core.runnables.graph import MermaidDrawMethodfrom langchain_openai import ChatOpenAIfrom langgraph.checkpoint.memory import MemorySaverfrom langgraph.graph import StateGraph, START, END, MessagesStatefrom langchain_core.tools import toolfrom langgraph.prebuilt import ToolNodedef display_graph(graph, output_folder="output", ):    # Code to visualise the graph, we will use this in all lessons    mermaid_png = graph.get_graph(xray=1).draw_mermaid_png(        draw_method=MermaidDrawMethod.API    )    # Create output folder if it doesn't exist    output_folder = "."    os.makedirs(output_folder, exist_ok=True)    filename = os.path.join(output_folder, f"graph_{random.randint(1, 100000)}.png")    with open(filename, 'wb') as f:        f.write(mermaid_png)    if sys.platform.startswith('darwin'):        subprocess.call(('open', filename))    elif sys.platform.startswith('linux'):        subprocess.call(('xdg-open', filename))    elif sys.platform.startswith('win'):        os.startfile(filename)class State(TypedDict):    input: str    user_feedback: strdef agent_reasoning(state: State):    print(f"Agent is reasoning: {state['input']}")    # Agent decides whether to ask human based on input length    if len(state["input"]) > 10:        print("Agent needs clarification.")        return state    else:        state["user_feedback"] = "No clarification needed"        return statedef ask_human(state: State):    print("--- Asking for human feedback ---")    feedback = input("Please provide feedback on the input: ")    state['user_feedback'] = feedback    return state# Define a tool action after human feedback@tooldef perform_action(user_feedback: str):    """    Perform an action based on the provided user feedback.    """    print(f"Action taken based on feedback: {user_feedback}")    return {"user_feedback": f"Feedback processed: {user_feedback}"}builder = StateGraph(State)builder.add_node("agent_reasoning", agent_reasoning)builder.add_node("ask_human", ask_human)builder.add_node("perform_action", perform_action)builder.add_edge(START, "agent_reasoning")builder.add_conditional_edges(    "agent_reasoning",    lambda state: "ask_human" if len(state["input"]) > 10 else "perform_action",    {        "ask_human": "ask_human",        "perform_action": "perform_action"    })builder.add_edge("ask_human", "perform_action")builder.add_edge("perform_action", END)memory = MemorySaver()graph = builder.compile(checkpointer=memory, interrupt_before=["ask_human"])display_graph(graph)# Run the graphinitial_input = {"input": "Proceed with reasoning?"}thread = {"configurable": {"thread_id": "1"}}# Stream the graph until the first interruptionfor event in graph.stream(initial_input, thread, stream_mode="values"):    print(event)# Get user input and update the stateuser_feedback = input("User feedback: ")graph.update_state(thread, {"user_feedback": user_feedback},                   as_node="ask_human")# Resume execution after feedbackfor event in graph.stream(None, thread, stream_mode="values"):    print(event)

运行结果

{'input': 'Proceed with reasoning?'}Agent is reasoning: Proceed with reasoning?Agent needs clarification.{'input': 'Proceed with reasoning?'}User feedback: 12324{'input': 'Proceed with reasoning?', 'user_feedback': '12324'}Action taken based on feedback: 12324{'input': 'Proceed with reasoning?', 'user_feedback': 'Feedback processed: 12324'}

查看并更新历史状态

get_state_history 获取某会话的历史状态stream 方法支持从历史的某一个状态继续会话update_state 支持修改历史状态记录

from langchain_openai import ChatOpenAIfrom langchain_core.tools import toolfrom langgraph.graph import MessagesState, START, END, StateGraphfrom langgraph.checkpoint.memory import MemorySaverfrom langgraph.prebuilt import ToolNodefrom dotenv import load_dotenvimport osfrom langchain_core.runnables.graph import MermaidDrawMethodfrom langchain_core.messages import HumanMessageimport randomimport subprocessimport sysdef display_graph(graph, output_folder="output", ):    # Code to visualise the graph, we will use this in all lessons    mermaid_png = graph.get_graph(xray=1).draw_mermaid_png(        draw_method=MermaidDrawMethod.API    )    # Create output folder if it doesn't exist    output_folder = "."    os.makedirs(output_folder, exist_ok=True)    filename = os.path.join(output_folder, f"graph_{random.randint(1, 100000)}.png")    with open(filename, 'wb') as f:        f.write(mermaid_png)    if sys.platform.startswith('darwin'):        subprocess.call(('open', filename))    elif sys.platform.startswith('linux'):        subprocess.call(('xdg-open', filename))    elif sys.platform.startswith('win'):        os.startfile(filename)load_dotenv()model = ChatOpenAI(model="qwen-max",                   base_url=os.getenv("BASE_URL"),                   api_key=os.getenv("OPENAI_API_KEY"),                   streaming=True)# Define tools@tooldef play_song_on_spotify(song: str):    """Play a song on Spotify."""    return f"Successfully played {song} on Spotify!"@tooldef play_song_on_apple(song: str):    """Play a song on Apple Music."""    return f"Successfully played {song} on Apple Music!"# List of toolstools = [play_song_on_apple, play_song_on_spotify]tool_node = ToolNode(tools)# Set up modelmodel = model.bind_tools(tools)# Define model-calling functiondef call_model(state):    response = model.invoke(state["messages"])    return {"messages": [response]}# Define continuation logicdef should_continue(state):    last_message = state["messages"][-1]    if last_message.tool_calls:        return "continue"    return "end"# Build the graphworkflow = StateGraph(MessagesState)workflow.add_node("agent", call_model)workflow.add_node("action", tool_node)# Define graph flowworkflow.add_edge(START, "agent")workflow.add_conditional_edges(    "agent",    should_continue,    {        "continue": "action",        "end": END    })workflow.add_edge("action", "agent")# Set up memory for checkpointingmemory = MemorySaver()app = workflow.compile(checkpointer=memory)# display_graph(app)config = {"configurable": {"thread_id": "1"}}input_message = HumanMessage(content="你可以播放Taylor Swift的最流行的歌曲吗?")for event in app.stream({"messages": [input_message]}, config, stream_mode="values"):    print(event["messages"][-1].pretty_print())# View state historyprint("--- 状态历史记录 ---" + "\n\n\n")all_states = []state_history = app.get_state_history(config)for state in state_history:    all_states.append(state)    print(state)# 从某次状态下重复replay_state = all_states[2]  # Replay right before tool executionprint("重复state" + " " + str(replay_state) + "\n\n\n")print("--- Replayed State ---" + "\n\n\n")for event in app.stream(None, replay_state.config):    for v in event.values():        print(v)        print("\n\n\n")print("--- Branching off Past States---")# Get the last message with the tool calllast_message = replay_state.values["messages"][-1]# Update the tool call from Apple Music to Spotify# 修改消息if last_message.tool_calls[0]["name"] == "play_song_on_spotify":    last_message.tool_calls[0]["name"] = "play_song_on_apple"else:    last_message.tool_calls[0]["name"] = "play_song_on_spotify"# Update the state and resume executionbranch_config = app.update_state(replay_state.config, {"messages": [last_message]})for event in app.stream(None, branch_config):    print(event)

运行结果

================================ Human Message =================================你可以播放Taylor Swift的最流行的歌曲吗?None================================== Ai Message ==================================Tool Calls:  play_song_on_spotify (call_1a95d1cd1be04fea9431c0) Call ID: call_1a95d1cd1be04fea9431c0  Args:    song: Taylor Swift - Shake It OffNone================================= Tool Message =================================Name: play_song_on_spotifySuccessfully played Taylor Swift - Shake It Off on Spotify!None================================== Ai Message ==================================成功在Spotify上播放了Taylor Swift的歌曲"Shake It Off"! 如果您想听其他歌曲，随时告诉我。None--- 状态历史记录 ---StateSnapshot(values={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1'), AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_1a95d1cd1be04fea9431c0', 'function': {'arguments': '{"song": "Taylor Swift - Shake It Off"}', 'name': 'play_song_on_spotify'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--51e4d937-1b0d-4fcc-803e-c4b5a25e50c7-0', tool_calls=[{'name': 'play_song_on_spotify', 'args': {'song': 'Taylor Swift - Shake It Off'}, 'id': 'call_1a95d1cd1be04fea9431c0', 'type': 'tool_call'}]), ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Spotify!', name='play_song_on_spotify', id='5eba048c-7a79-43e8-ae7d-99deddb2e4a6', tool_call_id='call_1a95d1cd1be04fea9431c0'), AIMessage(content='成功在Spotify上播放了Taylor Swift的歌曲"Shake It Off"! 如果您想听其他歌曲，随时告诉我。', additional_kwargs={}, response_metadata={'finish_reason': 'stop', 'model_name': 'qwen-max'}, id='run--7493b409-7ad8-461f-aaab-e37e68263d39-0')]}, next=(), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-9957-66ce-8003-0ebfe9a4a043'}}, metadata={'source': 'loop', 'step': 3, 'parents': {}}, created_at='2025-08-11T08:45:30.916014+00:00', parent_config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-8761-6788-8002-fa90d17def27'}}, tasks=(), interrupts=())StateSnapshot(values={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1'), AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_1a95d1cd1be04fea9431c0', 'function': {'arguments': '{"song": "Taylor Swift - Shake It Off"}', 'name': 'play_song_on_spotify'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--51e4d937-1b0d-4fcc-803e-c4b5a25e50c7-0', tool_calls=[{'name': 'play_song_on_spotify', 'args': {'song': 'Taylor Swift - Shake It Off'}, 'id': 'call_1a95d1cd1be04fea9431c0', 'type': 'tool_call'}]), ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Spotify!', name='play_song_on_spotify', id='5eba048c-7a79-43e8-ae7d-99deddb2e4a6', tool_call_id='call_1a95d1cd1be04fea9431c0')]}, next=('agent',), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-8761-6788-8002-fa90d17def27'}}, metadata={'source': 'loop', 'step': 2, 'parents': {}}, created_at='2025-08-11T08:45:29.032692+00:00', parent_config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-875c-67e9-8001-66cc0f5b12be'}}, tasks=(PregelTask(id='4684d9cb-6fba-093d-ce28-bc57d15a99f8', name='agent', path=('__pregel_pull', 'agent'), error=None, interrupts=(), state=None, result={'messages': [AIMessage(content='成功在Spotify上播放了Taylor Swift的歌曲"Shake It Off"! 如果您想听其他歌曲，随时告诉我。', additional_kwargs={}, response_metadata={'finish_reason': 'stop', 'model_name': 'qwen-max'}, id='run--7493b409-7ad8-461f-aaab-e37e68263d39-0')]}),), interrupts=())StateSnapshot(values={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1'), AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_1a95d1cd1be04fea9431c0', 'function': {'arguments': '{"song": "Taylor Swift - Shake It Off"}', 'name': 'play_song_on_spotify'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--51e4d937-1b0d-4fcc-803e-c4b5a25e50c7-0', tool_calls=[{'name': 'play_song_on_spotify', 'args': {'song': 'Taylor Swift - Shake It Off'}, 'id': 'call_1a95d1cd1be04fea9431c0', 'type': 'tool_call'}])]}, next=('action',), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-875c-67e9-8001-66cc0f5b12be'}}, metadata={'source': 'loop', 'step': 1, 'parents': {}}, created_at='2025-08-11T08:45:29.030653+00:00', parent_config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-786f-6c85-8000-d58fce7ad3a7'}}, tasks=(PregelTask(id='a5624aa2-7d3d-fb1d-adb4-ad33f403169f', name='action', path=('__pregel_pull', 'action'), error=None, interrupts=(), state=None, result={'messages': [ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Spotify!', name='play_song_on_spotify', id='5eba048c-7a79-43e8-ae7d-99deddb2e4a6', tool_call_id='call_1a95d1cd1be04fea9431c0')]}),), interrupts=())StateSnapshot(values={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1')]}, next=('agent',), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-786f-6c85-8000-d58fce7ad3a7'}}, metadata={'source': 'loop', 'step': 0, 'parents': {}}, created_at='2025-08-11T08:45:27.465690+00:00', parent_config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-786d-658d-bfff-47e0e417bba6'}}, tasks=(PregelTask(id='0ab5a7f4-7f15-f001-64dd-d2291b5d9c0a', name='agent', path=('__pregel_pull', 'agent'), error=None, interrupts=(), state=None, result={'messages': [AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_1a95d1cd1be04fea9431c0', 'function': {'arguments': '{"song": "Taylor Swift - Shake It Off"}', 'name': 'play_song_on_spotify'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--51e4d937-1b0d-4fcc-803e-c4b5a25e50c7-0', tool_calls=[{'name': 'play_song_on_spotify', 'args': {'song': 'Taylor Swift - Shake It Off'}, 'id': 'call_1a95d1cd1be04fea9431c0', 'type': 'tool_call'}])]}),), interrupts=())StateSnapshot(values={'messages': []}, next=('__start__',), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-786d-658d-bfff-47e0e417bba6'}}, metadata={'source': 'input', 'step': -1, 'parents': {}}, created_at='2025-08-11T08:45:27.464692+00:00', parent_config=None, tasks=(PregelTask(id='8c92498d-a5e1-bdcf-cde3-b5abcd2cfd5c', name='__start__', path=('__pregel_pull', '__start__'), error=None, interrupts=(), state=None, result={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1')]}),), interrupts=())重复state StateSnapshot(values={'messages': [HumanMessage(content='你可以播放Taylor Swift的最流行的歌曲吗?', additional_kwargs={}, response_metadata={}, id='ae716e3a-c657-473d-83d5-8c17cbdc85d1'), AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0, 'id': 'call_1a95d1cd1be04fea9431c0', 'function': {'arguments': '{"song": "Taylor Swift - Shake It Off"}', 'name': 'play_song_on_spotify'}, 'type': 'function'}]}, response_metadata={'finish_reason': 'tool_calls', 'model_name': 'qwen-max'}, id='run--51e4d937-1b0d-4fcc-803e-c4b5a25e50c7-0', tool_calls=[{'name': 'play_song_on_spotify', 'args': {'song': 'Taylor Swift - Shake It Off'}, 'id': 'call_1a95d1cd1be04fea9431c0', 'type': 'tool_call'}])]}, next=('action',), config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-875c-67e9-8001-66cc0f5b12be'}}, metadata={'source': 'loop', 'step': 1, 'parents': {}}, created_at='2025-08-11T08:45:29.030653+00:00', parent_config={'configurable': {'thread_id': '1', 'checkpoint_ns': '', 'checkpoint_id': '1f0768f8-786f-6c85-8000-d58fce7ad3a7'}}, tasks=(PregelTask(id='a5624aa2-7d3d-fb1d-adb4-ad33f403169f', name='action', path=('__pregel_pull', 'action'), error=None, interrupts=(), state=None, result={'messages': [ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Spotify!', name='play_song_on_spotify', id='5eba048c-7a79-43e8-ae7d-99deddb2e4a6', tool_call_id='call_1a95d1cd1be04fea9431c0')]}),), interrupts=())--- Replayed State ---{'messages': [ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Spotify!', name='play_song_on_spotify', id='b9f06d4d-fe20-477a-8c4c-7b6bf20e4ae5', tool_call_id='call_1a95d1cd1be04fea9431c0')]}{'messages': [AIMessage(content='成功在Spotify上播放了Taylor Swift的歌曲"Shake It Off"！如果你想要听其他的歌曲，随时告诉我。', additional_kwargs={}, response_metadata={'finish_reason': 'stop', 'model_name': 'qwen-max'}, id='run--327816ee-b742-4c65-9931-da751f137001-0')]}--- Branching off Past States---{'action': {'messages': [ToolMessage(content='Successfully played Taylor Swift - Shake It Off on Apple Music!', name='play_song_on_apple', id='cc5ee933-d8ee-44b7-9004-869ea8d70b68', tool_call_id='call_1a95d1cd1be04fea9431c0')]}}{'agent': {'messages': [AIMessage(content='成功在Apple Music上播放了Taylor Swift的歌曲"Shake It Off"！ 如果您想听其他的歌曲或者需要任何帮助，随时告诉我哦。', additional_kwargs={}, response_metadata={'finish_reason': 'stop', 'model_name': 'qwen-max'}, id='run--efc74dc2-4dfe-4ff8-b3ea-485c320e93c5-0')]}}
