本文详细阐述了企业级Model Context Protocol（MCP）从开发到生产的完整DevOps流程。首先，文章深入探讨了高可用性、可扩展性和安全性的企业级MCP部署架构设计，包括服务器集群配置、高可用性模式和安全架构。接着，详细介绍了使用Docker进行容器化部署的Dockerfile多阶段构建及优化配置，以及Kubernetes集成部署的最佳实践，涵盖命名空间、部署、服务、Ingress配置和密钥管理。最后，文章重点讲解了CI/CD流水线配置，以GitLab CI/CD为例，说明了自动化测试策略（单元测试、集成测试、性能测试）的实施，为企业构建稳定、高效、可扩展的MCP部署体系提供了全面的指导。

🚀 **企业级MCP部署架构设计**：强调了高可用性、可扩展性、安全性和可维护性是核心考量。推荐的多实例部署、健康检查、主从复制、Redis Cluster等策略，以及基于JWT的身份验证、RBAC授权和TLS加密的安全架构，为构建稳定可靠的MCP系统奠定了基础。

🐳 **容器化部署与Kubernetes集成**：通过多阶段构建的Dockerfile实现高效镜像构建，并提供了Docker Compose和Kubernetes（包括Deployment、Service、Ingress配置）的详细部署方案。这确保了MCP应用在不同环境中的一致性和便捷部署，同时通过资源限制和健康检查保障了运行稳定性。

⚙️ **CI/CD流水线与自动化测试**：以GitLab CI/CD为例，构建了从单元测试、代码质量检查、安全扫描到分阶段部署（Staging、Production）的自动化流水线。文章强调了测试金字塔的实践，通过单元测试、集成测试和性能测试，确保代码质量和系统稳定性，实现快速迭代和可靠交付。

🔐 **配置与密钥管理**：在Kubernetes部署中，通过ConfigMap管理应用配置，使用Secret安全地存储数据库凭证、JWT密钥等敏感信息。这种分离管理的方式提高了配置的灵活性和系统的安全性，是企业级应用部署的关键环节。

企业级MCP部署实战：从开发到生产的完整DevOps流程

🌟 Hello，我是摘星！

🌈 在彩虹般绚烂的技术栈中，我是那个永不停歇的色彩收集者。

🦋 每一个优化都是我培育的花朵，每一个特性都是我放飞的蝴蝶。

🔬 每一次代码审查都是我的显微镜观察，每一次重构都是我的化学实验。

🎵 在编程的交响乐中，我既是指挥家也是演奏者。让我们一起，在技术的音乐厅里，奏响属于程序员的华美乐章。

摘要

作为一名深耕AI基础设施多年的技术博主摘星，我深刻认识到Model Context Protocol（MCP）在企业级应用中的巨大潜力和部署挑战。随着AI Agent技术的快速发展，越来越多的企业开始将MCP集成到其核心业务系统中，但从开发环境到生产环境的部署过程往往充满了复杂性和不确定性。在过去的项目实践中，我见证了许多企业在MCP部署过程中遇到的各种问题：从架构设计的不合理导致的性能瓶颈，到容器化部署中的资源配置错误，再到生产环境中的监控盲区和运维困难。这些问题不仅影响了系统的稳定性和性能，更重要的是阻碍了企业AI能力的快速迭代和创新。因此，建立一套完整的企业级MCP部署DevOps流程变得至关重要。本文将从企业环境下的部署架构设计出发，深入探讨容器化部署与Kubernetes集成的最佳实践，详细介绍CI/CD流水线配置与自动化测试的实施方案，并提供生产环境监控与运维管理的完整解决方案。通过系统性的方法论和实战经验分享，帮助企业技术团队构建稳定、高效、可扩展的MCP部署体系，实现从开发到生产的无缝衔接，为企业AI能力的持续发展奠定坚实的基础设施基础。

1. 企业级MCP部署架构设计

1.1 整体架构概览

企业级MCP部署需要考虑高可用性、可扩展性、安全性和可维护性等多个维度。以下是推荐的整体架构设计：

图1：企业级MCP部署整体架构图

1.2 核心组件设计

1.2.1 MCP服务器集群配置

```typescript// mcp-server-config.tsinterface MCPServerConfig { server: { port: number; host: string; maxConnections: number; timeout: number; }; cluster: { instances: number; loadBalancing: 'round-robin' | 'least-connections' | 'ip-hash'; healthCheck: { interval: number; timeout: number; retries: number; }; }; resources: { memory: string; cpu: string; storage: string; };}

const productionConfig: MCPServerConfig = {server: {port: 8080,host: '0.0.0.0',maxConnections: 1000,timeout: 30000},cluster: {instances: 3,loadBalancing: 'least-connections',healthCheck: {interval: 10000,timeout: 5000,retries: 3}},resources: {memory: '2Gi',cpu: '1000m',storage: '10Gi'}};

<h4 id="MJhEh">1.2.2 高可用性设计模式</h4>| 组件 | 高可用策略 | 故障转移时间 | 数据一致性 || --- | --- | --- | --- || MCP服务器 | 多实例部署 + 健康检查 | < 5秒 | 最终一致性 || 数据库 | 主从复制 + 自动故障转移 | < 30秒 | 强一致性 || 缓存层 | Redis Cluster | < 2秒 | 最终一致性 || 负载均衡器 | 双机热备 | < 1秒 | 无状态 |<h3 id="vmNVm">1.3 安全架构设计</h3>```yaml# security-config.yamlapiVersion: v1kind: ConfigMapmetadata:  name: mcp-security-configdata:  security.yaml: |    authentication:      type: "jwt"      secret: "${JWT_SECRET}"      expiration: "24h"        authorization:      rbac:        enabled: true        policies:          - role: "admin"            permissions: ["read", "write", "delete"]          - role: "user"            permissions: ["read"]        encryption:      tls:        enabled: true        cert: "/etc/ssl/certs/mcp.crt"        key: "/etc/ssl/private/mcp.key"          network:      allowedOrigins:        - "https://app.company.com"        - "https://admin.company.com"      rateLimiting:        requests: 1000        window: "1h"

2. 容器化部署与Kubernetes集成

2.1 Docker容器化配置

2.1.1 多阶段构建Dockerfile

```dockerfile# Dockerfile# 第一阶段：构建阶段FROM node:18-alpine AS builder

WORKDIR /app

复制依赖文件

COPY package*.json ./COPY tsconfig.json ./

安装依赖

RUN npm ci --only=production && npm cache clean --force

复制源代码

COPY src/ ./src/

构建应用

RUN npm run build

第二阶段：运行阶段

FROM node:18-alpine AS runtime

创建非root用户

RUN addgroup -g 1001 -S nodejs &&
adduser -S mcp -u 1001

WORKDIR /app

复制构建产物

COPY --from=builder --chown=mcp:nodejs /app/dist ./distCOPY --from=builder --chown=mcp:nodejs /app/node_modules ./node_modulesCOPY --from=builder --chown=mcp:nodejs /app/package.json ./

健康检查

HEALTHCHECK --interval=30s --timeout=3s --start-period=5s --retries=3
CMD curl -f http://localhost:8080/health || exit 1

切换到非root用户

USER mcp

暴露端口

EXPOSE 8080

启动命令

CMD ["node", "dist/server.js"]

<h4 id="f2HPu">2.1.2 容器优化配置</h4>```yaml# docker-compose.ymlversion: '3.8'services:  mcp-server:    build:      context: .      dockerfile: Dockerfile      target: runtime    image: mcp-server:latest    container_name: mcp-server    restart: unless-stopped        # 资源限制    deploy:      resources:        limits:          memory: 2G          cpus: '1.0'        reservations:          memory: 1G          cpus: '0.5'        # 环境变量    environment:      - NODE_ENV=production      - LOG_LEVEL=info      - DB_HOST=postgres      - REDIS_HOST=redis        # 端口映射    ports:      - "8080:8080"        # 健康检查    healthcheck:      test: ["CMD", "curl", "-f", "http://localhost:8080/health"]      interval: 30s      timeout: 10s      retries: 3      start_period: 40s        # 依赖服务    depends_on:      postgres:        condition: service_healthy      redis:        condition: service_healthy        # 网络配置    networks:      - mcp-network  postgres:    image: postgres:15-alpine    container_name: mcp-postgres    restart: unless-stopped    environment:      - POSTGRES_DB=mcp      - POSTGRES_USER=mcp_user      - POSTGRES_PASSWORD=${DB_PASSWORD}    volumes:      - postgres_data:/var/lib/postgresql/data    healthcheck:      test: ["CMD-SHELL", "pg_isready -U mcp_user -d mcp"]      interval: 10s      timeout: 5s      retries: 5    networks:      - mcp-network  redis:    image: redis:7-alpine    container_name: mcp-redis    restart: unless-stopped    command: redis-server --appendonly yes --requirepass ${REDIS_PASSWORD}    volumes:      - redis_data:/data    healthcheck:      test: ["CMD", "redis-cli", "ping"]      interval: 10s      timeout: 3s      retries: 3    networks:      - mcp-networkvolumes:  postgres_data:  redis_data:networks:  mcp-network:    driver: bridge

2.2 Kubernetes部署配置

2.2.1 命名空间和资源配置

```yaml# k8s/namespace.yamlapiVersion: v1kind: Namespacemetadata: name: mcp-production labels: name: mcp-production environment: production

---

k8s/deployment.yaml

apiVersion: apps/v1kind: Deploymentmetadata:name: mcp-servernamespace: mcp-productionlabels:app: mcp-serverversion: v1.0.0spec:replicas: 3strategy:type: RollingUpdaterollingUpdate:maxSurge: 1maxUnavailable: 0selector:matchLabels:app: mcp-servertemplate:metadata:labels:app: mcp-serverversion: v1.0.0spec:# 安全上下文securityContext:runAsNonRoot: truerunAsUser: 1001fsGroup: 1001

  # 容器配置  containers:  - name: mcp-server    image: mcp-server:v1.0.0    imagePullPolicy: Always        # 端口配置    ports:    - containerPort: 8080      name: http      protocol: TCP        # 环境变量    env:    - name: NODE_ENV      value: "production"    - name: DB_HOST      valueFrom:        secretKeyRef:          name: mcp-secrets          key: db-host    - name: DB_PASSWORD      valueFrom:        secretKeyRef:          name: mcp-secrets          key: db-password        # 资源限制    resources:      requests:        memory: "1Gi"        cpu: "500m"      limits:        memory: "2Gi"        cpu: "1000m"        # 健康检查    livenessProbe:      httpGet:        path: /health        port: 8080      initialDelaySeconds: 30      periodSeconds: 10      timeoutSeconds: 5      failureThreshold: 3        readinessProbe:      httpGet:        path: /ready        port: 8080      initialDelaySeconds: 5      periodSeconds: 5      timeoutSeconds: 3      failureThreshold: 3        # 卷挂载    volumeMounts:    - name: config-volume      mountPath: /app/config      readOnly: true    - name: logs-volume      mountPath: /app/logs    # 卷配置  volumes:  - name: config-volume    configMap:      name: mcp-config  - name: logs-volume    emptyDir: {}    # 节点选择  nodeSelector:    kubernetes.io/os: linux    # 容忍度配置  tolerations:  - key: "node-role.kubernetes.io/master"    operator: "Exists"    effect: "NoSchedule"

<h4 id="bq0Is">2.2.2 服务和Ingress配置</h4>```yaml# k8s/service.yamlapiVersion: v1kind: Servicemetadata:  name: mcp-server-service  namespace: mcp-production  labels:    app: mcp-serverspec:  type: ClusterIP  ports:  - port: 80    targetPort: 8080    protocol: TCP    name: http  selector:    app: mcp-server---# k8s/ingress.yamlapiVersion: networking.k8s.io/v1kind: Ingressmetadata:  name: mcp-server-ingress  namespace: mcp-production  annotations:    kubernetes.io/ingress.class: "nginx"    nginx.ingress.kubernetes.io/ssl-redirect: "true"    nginx.ingress.kubernetes.io/use-regex: "true"    nginx.ingress.kubernetes.io/rate-limit: "100"    nginx.ingress.kubernetes.io/rate-limit-window: "1m"    cert-manager.io/cluster-issuer: "letsencrypt-prod"spec:  tls:  - hosts:    - mcp-api.company.com    secretName: mcp-tls-secret  rules:  - host: mcp-api.company.com    http:      paths:      - path: /api/v1/mcp        pathType: Prefix        backend:          service:            name: mcp-server-service            port:              number: 80

2.3 配置管理和密钥管理

```yaml# k8s/configmap.yamlapiVersion: v1kind: ConfigMapmetadata: name: mcp-config namespace: mcp-productiondata: app.yaml: | server: port: 8080 timeout: 30000

logging:  level: info  format: jsonfeatures:  rateLimiting: true  caching: true  metrics: true

---

k8s/secret.yaml

apiVersion: v1kind: Secretmetadata:name: mcp-secretsnamespace: mcp-productiontype: Opaquedata:db-host: cG9zdGdyZXNxbC1zZXJ2aWNl # base64 encodeddb-password: c3VwZXJfc2VjcmV0X3Bhc3N3b3Jk # base64 encodedjwt-secret: and0X3NlY3JldF9rZXlfZm9yX2F1dGg= # base64 encoded

<h2 id="quk1x">3. CI/CD流水线配置与自动化测试</h2><h3 id="KFVsL">3.1 GitLab CI/CD配置</h3>```yaml# .gitlab-ci.ymlstages:  - test  - build  - security-scan  - deploy-staging  - integration-test  - deploy-productionvariables:  DOCKER_REGISTRY: registry.company.com  IMAGE_NAME: mcp-server  KUBERNETES_NAMESPACE_STAGING: mcp-staging  KUBERNETES_NAMESPACE_PRODUCTION: mcp-production# 单元测试阶段unit-test:  stage: test  image: node:18-alpine  cache:    paths:      - node_modules/  script:    - npm ci    - npm run test:unit    - npm run test:coverage  coverage: '/Lines\s*:\s*(\d+\.\d+)%/'  artifacts:    reports:      coverage_report:        coverage_format: cobertura        path: coverage/cobertura-coverage.xml    paths:      - coverage/    expire_in: 1 week  only:    - merge_requests    - main    - develop# 代码质量检查code-quality:  stage: test  image: node:18-alpine  script:    - npm ci    - npm run lint    - npm run type-check    - npm audit --audit-level moderate  artifacts:    reports:      codequality: gl-code-quality-report.json  only:    - merge_requests    - main# 构建Docker镜像build-image:  stage: build  image: docker:20.10.16  services:    - docker:20.10.16-dind  variables:    DOCKER_TLS_CERTDIR: "/certs"  before_script:    - echo $CI_REGISTRY_PASSWORD | docker login -u $CI_REGISTRY_USER --password-stdin $CI_REGISTRY  script:    - docker build -t $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA .    - docker build -t $CI_REGISTRY_IMAGE:latest .    - docker push $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA    - docker push $CI_REGISTRY_IMAGE:latest  only:    - main    - develop# 安全扫描security-scan:  stage: security-scan  image:     name: aquasec/trivy:latest    entrypoint: [""]  script:    - trivy image --exit-code 0 --format template --template "@contrib/sarif.tpl" -o gl-sast-report.json $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA    - trivy image --exit-code 1 --severity HIGH,CRITICAL $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA  artifacts:    reports:      sast: gl-sast-report.json  only:    - main    - develop# 部署到测试环境deploy-staging:  stage: deploy-staging  image: bitnami/kubectl:latest  environment:    name: staging    url: https://mcp-staging.company.com  script:    - kubectl config use-context $KUBE_CONTEXT_STAGING    - kubectl set image deployment/mcp-server mcp-server=$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA -n $KUBERNETES_NAMESPACE_STAGING    - kubectl rollout status deployment/mcp-server -n $KUBERNETES_NAMESPACE_STAGING --timeout=300s  only:    - develop# 集成测试integration-test:  stage: integration-test  image: node:18-alpine  services:    - postgres:13-alpine    - redis:6-alpine  variables:    POSTGRES_DB: mcp_test    POSTGRES_USER: test_user    POSTGRES_PASSWORD: test_password    REDIS_URL: redis://redis:6379  script:    - npm ci    - npm run test:integration    - npm run test:e2e  artifacts:    reports:      junit: test-results.xml  only:    - develop    - main# 生产环境部署deploy-production:  stage: deploy-production  image: bitnami/kubectl:latest  environment:    name: production    url: https://mcp-api.company.com  script:    - kubectl config use-context $KUBE_CONTEXT_PRODUCTION    - kubectl set image deployment/mcp-server mcp-server=$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA -n $KUBERNETES_NAMESPACE_PRODUCTION    - kubectl rollout status deployment/mcp-server -n $KUBERNETES_NAMESPACE_PRODUCTION --timeout=600s  when: manual  only:    - main

3.2 自动化测试策略

3.2.1 测试金字塔实现


图2：自动化测试金字塔架构图

3.2.2 单元测试配置

```typescript// tests/unit/mcp-server.test.tsimport { MCPServer } from '../../src/server/mcp-server';import { MockToolProvider } from '../mocks/tool-provider.mock';

describe('MCPServer', () => {let server: MCPServer;let mockToolProvider: MockToolProvider;

beforeEach(() => {mockToolProvider = new MockToolProvider();server = new MCPServer({port: 8080,toolProviders: [mockToolProvider]});});

afterEach(async () => {await server.close();});

describe('Tool Execution', () => {it('should execute tool successfully', async () => {// Arrangeconst toolName = 'test-tool';const toolArgs = { input: 'test-input' };const expectedResult = { output: 'test-output' };

  mockToolProvider.mockTool(toolName, expectedResult);  // Act  const result = await server.executeTool(toolName, toolArgs);  // Assert  expect(result).toEqual(expectedResult);  expect(mockToolProvider.getCallCount(toolName)).toBe(1);});it('should handle tool execution errors', async () => {  // Arrange  const toolName = 'failing-tool';  const error = new Error('Tool execution failed');    mockToolProvider.mockToolError(toolName, error);  // Act & Assert  await expect(server.executeTool(toolName, {}))    .rejects.toThrow('Tool execution failed');});

});

describe('Resource Management', () => {it('should list available resources', async () => {// Arrangeconst expectedResources = [{ uri: 'file://test.txt', name: 'Test File' },{ uri: 'db://users', name: 'Users Database' }];

  mockToolProvider.mockResources(expectedResources);  // Act  const resources = await server.listResources();  // Assert  expect(resources).toEqual(expectedResources);});

});});

<h4 id="l6iSH">3.2.3 集成测试配置</h4>```typescript// tests/integration/api.integration.test.tsimport request from 'supertest';import { TestContainers, StartedTestContainer } from 'testcontainers';import { PostgreSqlContainer } from '@testcontainers/postgresql';import { RedisContainer } from '@testcontainers/redis';import { createApp } from '../../src/app';describe('MCP API Integration Tests', () => {  let app: any;  let postgresContainer: StartedTestContainer;  let redisContainer: StartedTestContainer;  beforeAll(async () => {    // 启动测试容器    postgresContainer = await new PostgreSqlContainer()      .withDatabase('mcp_test')      .withUsername('test_user')      .withPassword('test_password')      .start();    redisContainer = await new RedisContainer()      .start();    // 创建应用实例    app = createApp({      database: {        host: postgresContainer.getHost(),        port: postgresContainer.getPort(),        database: 'mcp_test',        username: 'test_user',        password: 'test_password'      },      redis: {        host: redisContainer.getHost(),        port: redisContainer.getPort()      }    });  }, 60000);  afterAll(async () => {    await postgresContainer.stop();    await redisContainer.stop();  });  describe('POST /api/v1/mcp/tools/execute', () => {    it('should execute tool successfully', async () => {      const response = await request(app)        .post('/api/v1/mcp/tools/execute')        .send({          name: 'file-reader',          arguments: {            path: '/test/file.txt'          }        })        .expect(200);      expect(response.body).toHaveProperty('result');      expect(response.body.success).toBe(true);    });    it('should return error for invalid tool', async () => {      const response = await request(app)        .post('/api/v1/mcp/tools/execute')        .send({          name: 'non-existent-tool',          arguments: {}        })        .expect(404);      expect(response.body.error).toContain('Tool not found');    });  });  describe('GET /api/v1/mcp/resources', () => {    it('should list available resources', async () => {      const response = await request(app)        .get('/api/v1/mcp/resources')        .expect(200);      expect(response.body).toHaveProperty('resources');      expect(Array.isArray(response.body.resources)).toBe(true);    });  });});

3.3 性能测试和负载测试

3.3.1 性能测试配置

```javascript// tests/performance/load-test.jsimport http from 'k6/http';import { check, sleep } from 'k6';import { Rate } from 'k6/metrics';

// 自定义指标const errorRate = new Rate('errors');

export const options = {stages: [{ duration: '2m', target: 100 }, // 预热阶段{ duration: '5m', target: 100 }, // 稳定负载{ duration: '2m', target: 200 }, // 增加负载{ duration: '5m', target: 200 }, // 高负载稳定{ duration: '2m', target: 0 }, // 降负载],thresholds: {http_req_duration: ['p(95)<500'], // 95%的请求响应时间小于500mshttp_req_failed: ['rate<0.1'], // 错误率小于10%errors: ['rate<0.1'], // 自定义错误率小于10%},};

export default function () {const payload = JSON.stringify({name: 'test-tool',arguments: {input: 'performance test data'}});

const params = {headers: {'Content-Type': 'application/json','Authorization': 'Bearer test-token'},};

const response = http.post('mcp-staging.company.com/api/v1/mcp/…',payload,params);

const result = check(response, {'status is 200': (r) => r.status === 200,'response time < 500ms': (r) => r.timings.duration < 500,'response has result': (r) => r.json('result') !== undefined,});

errorRate.add(!result);sleep(1);}

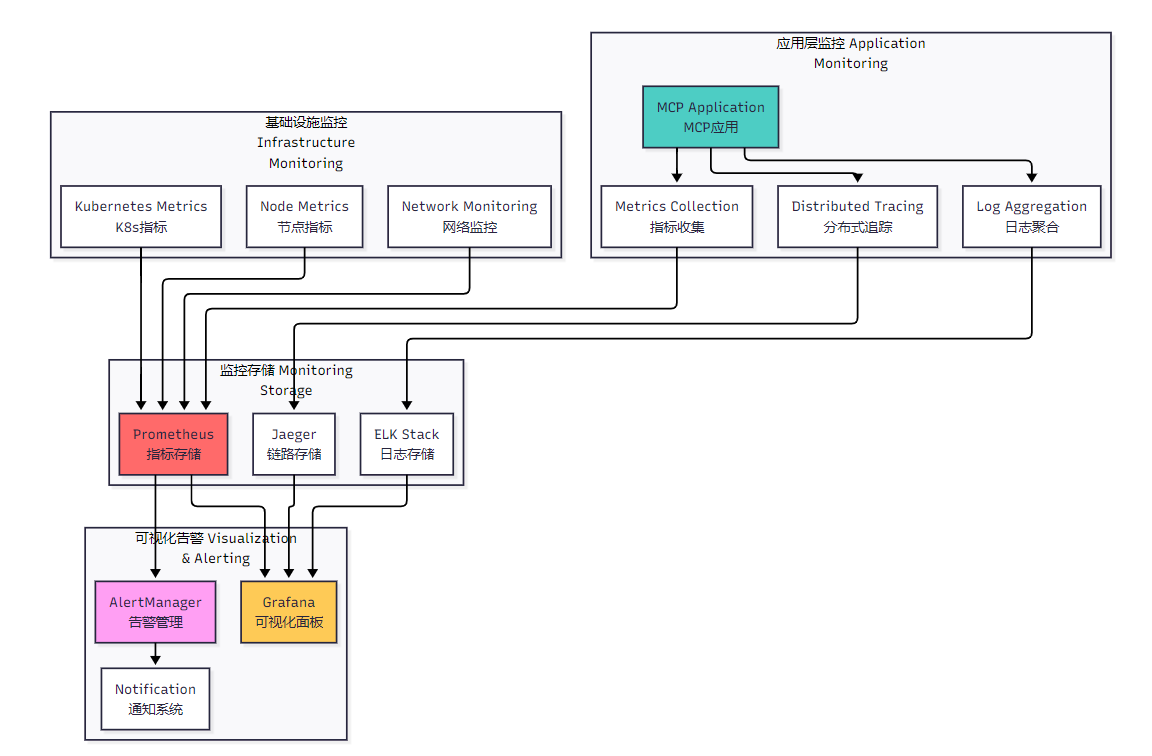

<h2 id="mF1sV">4. 生产环境监控与运维管理</h2><h3 id="BpyBh">4.1 监控体系架构</h3>![](https://cdn.nlark.com/yuque/0/2025/png/27326384/1754442458202-d9e87268-23b7-4fde-ac6b-11321e89baee.png)**图3：生产环境监控体系架构图**<h3 id="gfBc9">4.2 Prometheus监控配置</h3><h4 id="XZEOz">4.2.1 监控指标定义</h4>```typescript// src/monitoring/metrics.tsimport { register, Counter, Histogram, Gauge } from 'prom-client';export class MCPMetrics {  // 请求计数器  private requestCounter = new Counter({    name: 'mcp_requests_total',    help: 'Total number of MCP requests',    labelNames: ['method', 'status', 'endpoint']  });  // 请求持续时间直方图  private requestDuration = new Histogram({    name: 'mcp_request_duration_seconds',    help: 'Duration of MCP requests in seconds',    labelNames: ['method', 'endpoint'],    buckets: [0.1, 0.5, 1, 2, 5, 10]  });  // 活跃连接数  private activeConnections = new Gauge({    name: 'mcp_active_connections',    help: 'Number of active MCP connections'  });  // 工具执行指标  private toolExecutions = new Counter({    name: 'mcp_tool_executions_total',    help: 'Total number of tool executions',    labelNames: ['tool_name', 'status']  });  // 资源访问指标  private resourceAccess = new Counter({    name: 'mcp_resource_access_total',    help: 'Total number of resource accesses',    labelNames: ['resource_type', 'operation']  });  constructor() {    register.registerMetric(this.requestCounter);    register.registerMetric(this.requestDuration);    register.registerMetric(this.activeConnections);    register.registerMetric(this.toolExecutions);    register.registerMetric(this.resourceAccess);  }  // 记录请求指标  recordRequest(method: string, endpoint: string, status: string, duration: number) {    this.requestCounter.inc({ method, endpoint, status });    this.requestDuration.observe({ method, endpoint }, duration);  }  // 记录工具执行  recordToolExecution(toolName: string, status: string) {    this.toolExecutions.inc({ tool_name: toolName, status });  }  // 记录资源访问  recordResourceAccess(resourceType: string, operation: string) {    this.resourceAccess.inc({ resource_type: resourceType, operation });  }  // 更新活跃连接数  setActiveConnections(count: number) {    this.activeConnections.set(count);  }  // 获取指标端点  async getMetrics(): Promise<string> {    return register.metrics();  }}

4.2.2 Prometheus配置文件

```yaml# prometheus.ymlglobal: scrape_interval: 15s evaluation_interval: 15s

rule_files:

"mcp_rules.yml"

alerting:alertmanagers:- static_configs:- targets:- alertmanager:9093

scrape_configs:

MCP服务器监控

job_name: 'mcp-server'static_configs:
targets: ['mcp-server:8080']metrics_path: '/metrics'scrape_interval: 10sscrape_timeout: 5s

Kubernetes监控

job_name: 'kubernetes-apiservers'kubernetes_sd_configs:
role: endpointsscheme: httpstls_config:ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crtbearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/tokenrelabel_configs:source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]action: keepregex: default;kubernetes;https

节点监控

job_name: 'kubernetes-nodes'kubernetes_sd_configs:
role: nodescheme: httpstls_config:ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crtbearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/tokenrelabel_configs:action: labelmapregex: _meta_kubernetes_node_label(.+)

Pod监控

job_name: 'kubernetes-pods'kubernetes_sd_configs:
role: podrelabel_configs:source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]action: keepregex: truesource_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]action: replacetarget_label: metrics_pathregex: (.+)

<h3 id="Xl42F">4.3 告警规则配置</h3>```yaml# mcp_rules.ymlgroups:  - name: mcp_alerts    rules:      # 高错误率告警      - alert: MCPHighErrorRate        expr: rate(mcp_requests_total{status=~"5.."}[5m]) / rate(mcp_requests_total[5m]) > 0.05        for: 2m        labels:          severity: critical        annotations:          summary: "MCP服务器错误率过高"          description: "MCP服务器在过去5分钟内错误率超过5%，当前值：{{ $value | humanizePercentage }}"      # 响应时间过长告警      - alert: MCPHighLatency        expr: histogram_quantile(0.95, rate(mcp_request_duration_seconds_bucket[5m])) > 1        for: 5m        labels:          severity: warning        annotations:          summary: "MCP服务器响应时间过长"          description: "MCP服务器95%分位响应时间超过1秒，当前值：{{ $value }}s"      # 服务不可用告警      - alert: MCPServiceDown        expr: up{job="mcp-server"} == 0        for: 1m        labels:          severity: critical        annotations:          summary: "MCP服务器不可用"          description: "MCP服务器 {{ $labels.instance }} 已停止响应超过1分钟"      # 内存使用率过高告警      - alert: MCPHighMemoryUsage        expr: (container_memory_usage_bytes{pod=~"mcp-server-.*"} / container_spec_memory_limit_bytes) > 0.85        for: 5m        labels:          severity: warning        annotations:          summary: "MCP服务器内存使用率过高"          description: "Pod {{ $labels.pod }} 内存使用率超过85%，当前值：{{ $value | humanizePercentage }}"      # CPU使用率过高告警      - alert: MCPHighCPUUsage        expr: rate(container_cpu_usage_seconds_total{pod=~"mcp-server-.*"}[5m]) > 0.8        for: 5m        labels:          severity: warning        annotations:          summary: "MCP服务器CPU使用率过高"          description: "Pod {{ $labels.pod }} CPU使用率超过80%，当前值：{{ $value | humanizePercentage }}"

4.4 Grafana仪表板配置

```json{ "dashboard": { "id": null, "title": "MCP服务器监控仪表板", "tags": ["mcp", "monitoring"], "timezone": "browser", "panels": [ { "id": 1, "title": "请求速率", "type": "graph", "targets": [ { "expr": "rate(mcp_requests_total[5m])", "legendFormat": "总请求速率" }, { "expr": "rate(mcp_requests_total{status=~\"2..\"}[5m])", "legendFormat": "成功请求速率" }, { "expr": "rate(mcp_requests_total{status=~\"5..\"}[5m])", "legendFormat": "错误请求速率" } ], "yAxes": [ { "label": "请求/秒", "min": 0 } ], "gridPos": { "h": 8, "w": 12, "x": 0, "y": 0 } }, { "id": 2, "title": "响应时间分布", "type": "graph", "targets": [ { "expr": "histogram_quantile(0.50, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "50th percentile" }, { "expr": "histogram_quantile(0.95, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "95th percentile" }, { "expr": "histogram_quantile(0.99, rate(mcp_request_duration_seconds_bucket[5m]))", "legendFormat": "99th percentile" } ], "yAxes": [ { "label": "秒", "min": 0 } ], "gridPos": { "h": 8, "w": 12, "x": 12, "y": 0 } }, { "id": 3, "title": "错误率", "type": "singlestat", "targets": [ { "expr": "rate(mcp_requests_total{status=~\"5..\"}[5m]) / rate(mcp_requests_total[5m]) * 100", "legendFormat": "错误率" } ], "valueName": "current", "format": "percent", "thresholds": "1,5", "colorBackground": true, "gridPos": { "h": 4, "w": 6, "x": 0, "y": 8 } }, { "id": 4, "title": "活跃连接数", "type": "singlestat", "targets": [ { "expr": "mcp_active_connections", "legendFormat": "活跃连接" } ], "valueName": "current", "format": "short", "gridPos": { "h": 4, "w": 6, "x": 6, "y": 8 } } ], "time": { "from": "now-1h", "to": "now" }, "refresh": "5s" }}```

4.5 日志管理与分析

4.5.1 结构化日志配置

```typescript// src/logging/logger.tsimport winston from 'winston';import { ElasticsearchTransport } from 'winston-elasticsearch';

export class MCPLogger {private logger: winston.Logger;

constructor() {const esTransport = new ElasticsearchTransport({level: 'info',clientOpts: {node: process.env.ELASTICSEARCH_URL || 'http://elasticsearch:9200'},index: 'mcp-logs',indexTemplate: {name: 'mcp-logs-template',pattern: 'mcp-logs-*',settings: {number_of_shards: 1,number_of_replicas: 1},mappings: {properties: {'@timestamp': { type: 'date' },level: { type: 'keyword' },message: { type: 'text' },service: { type: 'keyword' },traceId: { type: 'keyword' },userId: { type: 'keyword' },toolName: { type: 'keyword' },duration: { type: 'float' }}}}});

this.logger = winston.createLogger({  level: process.env.LOG_LEVEL || 'info',  format: winston.format.combine(    winston.format.timestamp(),    winston.format.errors({ stack: true }),    winston.format.json()  ),  defaultMeta: {    service: 'mcp-server',    version: process.env.APP_VERSION || '1.0.0'  },  transports: [    new winston.transports.Console({      format: winston.format.combine(        winston.format.colorize(),        winston.format.simple()      )    }),    esTransport  ]});

}

info(message: string, meta?: any) {this.logger.info(message, meta);}

error(message: string, error?: Error, meta?: any) {this.logger.error(message, { error: error?.stack, ...meta });}

warn(message: string, meta?: any) {this.logger.warn(message, meta);}

debug(message: string, meta?: any) {this.logger.debug(message, meta);}

// 记录工具执行日志logToolExecution(toolName: string, userId: string, duration: number, success: boolean, traceId?: string) {this.info('Tool execution completed', {toolName,userId,duration,success,traceId,type: 'tool_execution'});}

// 记录资源访问日志logResourceAccess(resourceUri: string, operation: string, userId: string, traceId?: string) {this.info('Resource accessed', {resourceUri,operation,userId,traceId,type: 'resource_access'});}}

<h4 id="xOiGS">4.5.2 分布式链路追踪</h4>```typescript// src/tracing/tracer.tsimport { NodeSDK } from '@opentelemetry/sdk-node';import { JaegerExporter } from '@opentelemetry/exporter-jaeger';import { Resource } from '@opentelemetry/resources';import { SemanticResourceAttributes } from '@opentelemetry/semantic-conventions';import { trace, context, SpanStatusCode } from '@opentelemetry/api';export class MCPTracer {  private sdk: NodeSDK;  private tracer: any;  constructor() {    const jaegerExporter = new JaegerExporter({      endpoint: process.env.JAEGER_ENDPOINT || 'http://jaeger:14268/api/traces',    });    this.sdk = new NodeSDK({      resource: new Resource({        [SemanticResourceAttributes.SERVICE_NAME]: 'mcp-server',        [SemanticResourceAttributes.SERVICE_VERSION]: process.env.APP_VERSION || '1.0.0',      }),      traceExporter: jaegerExporter,    });    this.sdk.start();    this.tracer = trace.getTracer('mcp-server');  }  // 创建工具执行跨度  async traceToolExecution<T>(    toolName: string,    operation: () => Promise<T>,    attributes?: Record<string, string | number>  ): Promise<T> {    return this.tracer.startActiveSpan(`tool.${toolName}`, async (span: any) => {      try {        span.setAttributes({          'tool.name': toolName,          'operation.type': 'tool_execution',          ...attributes        });        const result = await operation();        span.setStatus({ code: SpanStatusCode.OK });        return result;      } catch (error) {        span.setStatus({          code: SpanStatusCode.ERROR,          message: error instanceof Error ? error.message : 'Unknown error'        });        span.recordException(error as Error);        throw error;      } finally {        span.end();      }    });  }  // 创建资源访问跨度  async traceResourceAccess<T>(    resourceUri: string,    operation: string,    handler: () => Promise<T>  ): Promise<T> {    return this.tracer.startActiveSpan(`resource.${operation}`, async (span: any) => {      try {        span.setAttributes({          'resource.uri': resourceUri,          'resource.operation': operation,          'operation.type': 'resource_access'        });        const result = await handler();        span.setStatus({ code: SpanStatusCode.OK });        return result;      } catch (error) {        span.setStatus({          code: SpanStatusCode.ERROR,          message: error instanceof Error ? error.message : 'Unknown error'        });        span.recordException(error as Error);        throw error;      } finally {        span.end();      }    });  }  // 获取当前跟踪ID  getCurrentTraceId(): string | undefined {    const activeSpan = trace.getActiveSpan();    return activeSpan?.spanContext().traceId;  }}

5. 运维自动化与故障处理

5.1 自动化运维脚本

```bash#!/bin/bash# scripts/deploy.sh - 自动化部署脚本

set -e

配置变量

NAMESPACE=${NAMESPACE:-"mcp-production"}IMAGE_TAG=${IMAGE_TAG:-"latest"}KUBECTL_TIMEOUT=${KUBECTL_TIMEOUT:-"300s"}

颜色输出

RED='\033[0;31m'GREEN='\033[0;32m'YELLOW='\033[1;33m'NC='\033[0m' # No Color

log_info() {echo -e "${GREEN}[INFO]${NC} $1"}

log_warn() {echo -e "${YELLOW}[WARN]${NC} $1"}

log_error() {echo -e "${RED}[ERROR]${NC} $1"}

检查前置条件

check_prerequisites() {log_info "检查部署前置条件..."

# 检查kubectlif ! command -v kubectl &> /dev/null; then    log_error "kubectl 未安装"    exit 1fi# 检查集群连接if ! kubectl cluster-info &> /dev/null; then    log_error "无法连接到Kubernetes集群"    exit 1fi# 检查命名空间if ! kubectl get namespace $NAMESPACE &> /dev/null; then    log_warn "命名空间 $NAMESPACE 不存在，正在创建..."    kubectl create namespace $NAMESPACEfilog_info "前置条件检查完成"

}

部署配置

deploy_configs() {log_info "部署配置文件..."

kubectl apply -f k8s/configmap.yaml -n $NAMESPACEkubectl apply -f k8s/secret.yaml -n $NAMESPACElog_info "配置文件部署完成"

}

部署应用

deploy_application() {log_info "部署MCP服务器..."

# 更新镜像标签sed -i.bak "s|image: mcp-server:.*|image: mcp-server:$IMAGE_TAG|g" k8s/deployment.yaml# 应用部署配置kubectl apply -f k8s/deployment.yaml -n $NAMESPACEkubectl apply -f k8s/service.yaml -n $NAMESPACEkubectl apply -f k8s/ingress.yaml -n $NAMESPACE# 等待部署完成log_info "等待部署完成..."kubectl rollout status deployment/mcp-server -n $NAMESPACE --timeout=$KUBECTL_TIMEOUT# 恢复原始文件mv k8s/deployment.yaml.bak k8s/deployment.yamllog_info "应用部署完成"

}

健康检查

health_check() {log_info "执行健康检查..."

# 检查Pod状态READY_PODS=$(kubectl get pods -n $NAMESPACE -l app=mcp-server -o jsonpath='{.items[*].status.conditions[?(@.type=="Ready")].status}' | grep -o True | wc -l)TOTAL_PODS=$(kubectl get pods -n $NAMESPACE -l app=mcp-server --no-headers | wc -l)if [ "$READY_PODS" -eq "$TOTAL_PODS" ] && [ "$TOTAL_PODS" -gt 0 ]; then    log_info "健康检查通过: $READY_PODS/$TOTAL_PODS pods ready"else    log_error "健康检查失败: $READY_PODS/$TOTAL_PODS pods ready"    exit 1fi# 检查服务端点SERVICE_IP=$(kubectl get service mcp-server-service -n $NAMESPACE -o jsonpath='{.spec.clusterIP}')if curl -f http://$SERVICE_IP/health &> /dev/null; then    log_info "服务端点健康检查通过"else    log_warn "服务端点健康检查失败，但继续部署"fi

}

回滚函数

rollback() {log_warn "执行回滚操作..."kubectl rollout undo deployment/mcp-server -n $NAMESPACE kubectl rollout status deployment/mcp-server -n$NAMESPACE --timeout=$KUBECTL_TIMEOUTlog_info "回滚完成"}

主函数

main() {log_info "开始MCP服务器部署流程..."

check_prerequisitesdeploy_configsdeploy_application# 健康检查失败时自动回滚if ! health_check; then    log_error "部署失败，执行回滚..."    rollback    exit 1filog_info "MCP服务器部署成功完成！"# 显示部署信息echo ""echo "部署信息:"echo "- 命名空间: $NAMESPACE"echo "- 镜像标签: $IMAGE_TAG"echo "- Pod状态:"kubectl get pods -n $NAMESPACE -l app=mcp-serverecho ""echo "- 服务状态:"kubectl get services -n $NAMESPACE -l app=mcp-server

}

错误处理

trap 'log_error "部署过程中发生错误，退出码: $?"' ERR

执行主函数

main "$@"

<h3 id="qr9YE">5.2 故障自动恢复</h3>```python# scripts/auto_recovery.py - 自动故障恢复脚本import timeimport loggingimport requestsimport subprocessfrom typing import Dict, Listfrom dataclasses import dataclassfrom enum import Enumclass HealthStatus(Enum):    HEALTHY = "healthy"    DEGRADED = "degraded"    UNHEALTHY = "unhealthy"@dataclassclass HealthCheck:    name: str    url: str    timeout: int = 5    retries: int = 3    expected_status: int = 200class AutoRecoveryManager:    def __init__(self, config: Dict):        self.config = config        self.logger = self._setup_logging()        self.health_checks = self._load_health_checks()        self.recovery_actions = self._load_recovery_actions()            def _setup_logging(self) -> logging.Logger:        logging.basicConfig(            level=logging.INFO,            format='%(asctime)s - %(name)s - %(levelname)s - %(message)s'        )        return logging.getLogger('auto_recovery')        def _load_health_checks(self) -> List[HealthCheck]:        checks = []        for check_config in self.config.get('health_checks', []):            checks.append(HealthCheck(**check_config))        return checks        def _load_recovery_actions(self) -> Dict:        return self.config.get('recovery_actions', {})        def check_health(self, check: HealthCheck) -> bool:        """执行单个健康检查"""        for attempt in range(check.retries):            try:                response = requests.get(                    check.url,                     timeout=check.timeout                )                if response.status_code == check.expected_status:                    return True                                except requests.RequestException as e:                self.logger.warning(                    f"健康检查失败 {check.name} (尝试 {attempt + 1}/{check.retries}): {e}"                )                            if attempt < check.retries - 1:                time.sleep(2 ** attempt)  # 指数退避                        return False        def get_system_health(self) -> HealthStatus:        """获取系统整体健康状态"""        failed_checks = 0        total_checks = len(self.health_checks)                for check in self.health_checks:            if not self.check_health(check):                failed_checks += 1                self.logger.error(f"健康检查失败: {check.name}")                if failed_checks == 0:            return HealthStatus.HEALTHY        elif failed_checks < total_checks / 2:            return HealthStatus.DEGRADED        else:            return HealthStatus.UNHEALTHY        def execute_recovery_action(self, action_name: str) -> bool:        """执行恢复操作"""        action = self.recovery_actions.get(action_name)        if not action:            self.logger.error(f"未找到恢复操作: {action_name}")            return False                try:            self.logger.info(f"执行恢复操作: {action_name}")                        if action['type'] == 'kubectl':                result = subprocess.run(                    action['command'].split(),                    capture_output=True,                    text=True,                    timeout=action.get('timeout', 60)                )                                if result.returncode == 0:                    self.logger.info(f"恢复操作成功: {action_name}")                    return True                else:                    self.logger.error(f"恢复操作失败: {result.stderr}")                    return False                                elif action['type'] == 'http':                response = requests.post(                    action['url'],                    json=action.get('payload', {}),                    timeout=action.get('timeout', 30)                )                                if response.status_code in [200, 201, 202]:                    self.logger.info(f"恢复操作成功: {action_name}")                    return True                else:                    self.logger.error(f"恢复操作失败: HTTP {response.status_code}")                    return False                            except Exception as e:            self.logger.error(f"执行恢复操作时发生异常: {e}")            return False        def run_recovery_cycle(self):        """运行一次恢复周期"""        health_status = self.get_system_health()        self.logger.info(f"系统健康状态: {health_status.value}")                if health_status == HealthStatus.HEALTHY:            return                # 根据健康状态执行相应的恢复操作        if health_status == HealthStatus.DEGRADED:            recovery_actions = ['restart_unhealthy_pods', 'clear_cache']        else:  # UNHEALTHY            recovery_actions = ['restart_deployment', 'scale_up', 'notify_oncall']                for action in recovery_actions:            if self.execute_recovery_action(action):                # 等待恢复操作生效                time.sleep(30)                                # 重新检查健康状态                if self.get_system_health() == HealthStatus.HEALTHY:                    self.logger.info("系统已恢复健康状态")                    return                self.logger.warning("自动恢复操作完成，但系统仍未完全恢复")        def start_monitoring(self, interval: int = 60):        """启动持续监控"""        self.logger.info(f"启动自动恢复监控，检查间隔: {interval}秒")                while True:            try:                self.run_recovery_cycle()                time.sleep(interval)            except KeyboardInterrupt:                self.logger.info("监控已停止")                break            except Exception as e:                self.logger.error(f"监控过程中发生异常: {e}")                time.sleep(interval)# 配置示例config = {    "health_checks": [        {            "name": "mcp_server_health",            "url": "http://mcp-server-service/health",            "timeout": 5,            "retries": 3        },        {            "name": "mcp_server_ready",            "url": "http://mcp-server-service/ready",            "timeout": 5,            "retries": 2        }    ],    "recovery_actions": {        "restart_unhealthy_pods": {            "type": "kubectl",            "command": "kubectl delete pods -l app=mcp-server,status=unhealthy -n mcp-production",            "timeout": 60        },        "restart_deployment": {            "type": "kubectl",            "command": "kubectl rollout restart deployment/mcp-server -n mcp-production",            "timeout": 120        },        "scale_up": {            "type": "kubectl",            "command": "kubectl scale deployment/mcp-server --replicas=5 -n mcp-production",            "timeout": 60        },        "clear_cache": {            "type": "http",            "url": "http://mcp-server-service/admin/cache/clear",            "timeout": 30        },        "notify_oncall": {            "type": "http",            "url": "https://alerts.company.com/webhook",            "payload": {                "severity": "critical",                "message": "MCP服务器自动恢复失败，需要人工干预"            },            "timeout": 10        }    }}if __name__ == "__main__":    manager = AutoRecoveryManager(config)    manager.start_monitoring()

5.3 性能调优与容量规划

5.3.1 资源使用分析

```python# scripts/capacity_planning.py - 容量规划分析import pandas as pdimport numpy as npfrom datetime import datetime, timedeltaimport matplotlib.pyplot as pltfrom sklearn.linear_model import LinearRegressionfrom sklearn.preprocessing import PolynomialFeatures

class CapacityPlanner:def init(self, prometheus_url: str):self.prometheus_url = prometheus_urlself.metrics_data = {}

def fetch_metrics(self, query: str, start_time: datetime, end_time: datetime) -> pd.DataFrame:    """从Prometheus获取指标数据"""    # 这里简化实现，实际应该调用Prometheus API    # 模拟数据生成    time_range = pd.date_range(start_time, end_time, freq='5min')    data = {        'timestamp': time_range,        'value': np.random.normal(50, 10, len(time_range))  # 模拟CPU使用率    }    return pd.DataFrame(data)def analyze_resource_trends(self, days: int = 30) -> dict:    """分析资源使用趋势"""    end_time = datetime.now()    start_time = end_time - timedelta(days=days)        # 获取各项指标    cpu_data = self.fetch_metrics('mcp_cpu_usage', start_time, end_time)    memory_data = self.fetch_metrics('mcp_memory_usage', start_time, end_time)    request_data = self.fetch_metrics('mcp_requests_rate', start_time, end_time)        # 趋势分析    trends = {}    for name, data in [('cpu', cpu_data), ('memory', memory_data), ('requests', request_data)]:        X = np.arange(len(data)).reshape(-1, 1)        y = data['value'].values                # 线性回归        model = LinearRegression()        model.fit(X, y)                # 预测未来30天        future_X = np.arange(len(data), len(data) + 8640).reshape(-1, 1)  # 30天的5分钟间隔        future_y = model.predict(future_X)                trends[name] = {            'current_avg': np.mean(y[-288:]),  # 最近24小时平均值            'trend_slope': model.coef_[0],            'predicted_30d': future_y[-1],            'growth_rate': (future_y[-1] - np.mean(y[-288:])) / np.mean(y[-288:]) * 100        }        return trendsdef calculate_capacity_requirements(self, target_growth: float = 50) -> dict:    """计算容量需求"""    trends = self.analyze_resource_trends()        recommendations = {}        # CPU容量规划    current_cpu = trends['cpu']['current_avg']    predicted_cpu = current_cpu * (1 + target_growth / 100)        if predicted_cpu > 70:  # CPU使用率阈值        cpu_scale_factor = predicted_cpu / 70        recommendations['cpu'] = {            'action': 'scale_up',            'current_usage': f"{current_cpu:.1f}%",            'predicted_usage': f"{predicted_cpu:.1f}%",            'recommended_scale': f"{cpu_scale_factor:.1f}x",            'new_replicas': int(np.ceil(3 * cpu_scale_factor))  # 当前3个副本        }    else:        recommendations['cpu'] = {            'action': 'maintain',            'current_usage': f"{current_cpu:.1f}%",            'predicted_usage': f"{predicted_cpu:.1f}%"        }        # 内存容量规划    current_memory = trends['memory']['current_avg']    predicted_memory = current_memory * (1 + target_growth / 100)        if predicted_memory > 80:  # 内存使用率阈值        memory_scale_factor = predicted_memory / 80        recommendations['memory'] = {            'action': 'increase_limits',            'current_usage': f"{current_memory:.1f}%",            'predicted_usage': f"{predicted_memory:.1f}%",            'recommended_memory': f"{int(2 * memory_scale_factor)}Gi"  # 当前2Gi        }    else:        recommendations['memory'] = {            'action': 'maintain',            'current_usage': f"{current_memory:.1f}%",            'predicted_usage': f"{predicted_memory:.1f}%"        }        # 请求量容量规划    current_rps = trends['requests']['current_avg']    predicted_rps = current_rps * (1 + target_growth / 100)        if predicted_rps > 1000:  # RPS阈值        rps_scale_factor = predicted_rps / 1000        recommendations['throughput'] = {            'action': 'scale_out',            'current_rps': f"{current_rps:.0f}",            'predicted_rps': f"{predicted_rps:.0f}",            'recommended_replicas': int(np.ceil(3 * rps_scale_factor))        }    else:        recommendations['throughput'] = {            'action': 'maintain',            'current_rps': f"{current_rps:.0f}",            'predicted_rps': f"{predicted_rps:.0f}"        }        return recommendationsdef generate_capacity_report(self) -> str:    """生成容量规划报告"""    recommendations = self.calculate_capacity_requirements()        report = f"""

MCP服务器容量规划报告

生成时间: {datetime.now().strftime('%Y-%m-%d %H:%M:%S')}

当前资源使用情况

CPU使用率

当前平均使用率: {recommendations['cpu']['current_usage']}预测使用率: {recommendations['cpu']['predicted_usage']}建议操作: {recommendations['cpu']['action']}

内存使用率

当前平均使用率: {recommendations['memory']['current_usage']}预测使用率: {recommendations['memory']['predicted_usage']}建议操作: {recommendations['memory']['action']}

请求吞吐量

当前平均RPS: {recommendations['throughput']['current_rps']}预测RPS: {recommendations['throughput']['predicted_rps']}建议操作: {recommendations['throughput']['action']}

扩容建议

"""

    if recommendations['cpu']['action'] == 'scale_up':        report += f"- **CPU扩容**: 建议将副本数扩展到 {recommendations['cpu']['new_replicas']} 个\n"        if recommendations['memory']['action'] == 'increase_limits':        report += f"- **内存扩容**: 建议将内存限制提升到 {recommendations['memory']['recommended_memory']}\n"        if recommendations['throughput']['action'] == 'scale_out':        report += f"- **吞吐量扩容**: 建议将副本数扩展到 {recommendations['throughput']['recommended_replicas']} 个\n"        report += """

实施建议

监控告警: 设置资源使用率告警阈值自动扩缩容: 配置HPA (Horizontal Pod Autoscaler)定期评估: 每月进行一次容量规划评估成本优化: 在非高峰期适当缩容以节省成本

风险评估

高风险: CPU/内存使用率超过80%

中风险: 请求响应时间超过500ms

低风险: 资源使用率在正常范围内"""

  return report

使用示例

if name == "main":planner = CapacityPlanner("http://prometheus:9090")report = planner.generate_capacity_report()print(report)

# 保存报告with open(f"capacity_report_{datetime.now().strftime('%Y%m%d')}.md", "w") as f:    f.write(report)

<h2 id="bOYfl">6. 安全加固与合规性</h2><h3 id="wSUNP">6.1 安全扫描与漏洞管理</h3>```yaml# .github/workflows/security-scan.ymlname: Security Scanon:  push:    branches: [ main, develop ]  pull_request:    branches: [ main ]  schedule:    - cron: '0 2 * * 1'  # 每周一凌晨2点jobs:  dependency-scan:    runs-on: ubuntu-latest    steps:      - uses: actions/checkout@v3            - name: Run Snyk to check for vulnerabilities        uses: snyk/actions/node@master        env:          SNYK_TOKEN: ${{ secrets.SNYK_TOKEN }}        with:          args: --severity-threshold=high                - name: Upload result to GitHub Code Scanning        uses: github/codeql-action/upload-sarif@v2        with:          sarif_file: snyk.sarif  container-scan:    runs-on: ubuntu-latest    steps:      - uses: actions/checkout@v3            - name: Build Docker image        run: docker build -t mcp-server:scan .              - name: Run Trivy vulnerability scanner        uses: aquasecurity/trivy-action@master        with:          image-ref: 'mcp-server:scan'          format: 'sarif'          output: 'trivy-results.sarif'                - name: Upload Trivy scan results        uses: github/codeql-action/upload-sarif@v2        with:          sarif_file: 'trivy-results.sarif'  code-scan:    runs-on: ubuntu-latest    steps:      - uses: actions/checkout@v3            - name: Initialize CodeQL        uses: github/codeql-action/init@v2        with:          languages: javascript                - name: Autobuild        uses: github/codeql-action/autobuild@v2              - name: Perform CodeQL Analysis        uses: github/codeql-action/analyze@v2

6.2 网络安全策略

```yaml# k8s/network-policy.yamlapiVersion: networking.k8s.io/v1kind: NetworkPolicymetadata: name: mcp-server-network-policy namespace: mcp-productionspec: podSelector: matchLabels: app: mcp-server policyTypes: - Ingress - Egress

ingress:

允许来自API网关的流量

from:
namespaceSelector:matchLabels:name: api-gatewayports:protocol: TCPport: 8080

允许来自监控系统的流量

from:
namespaceSelector:matchLabels:name: monitoringports:protocol: TCPport: 8080

egress:

允许访问数据库

to:
namespaceSelector:matchLabels:name: databaseports:protocol: TCPport: 5432

允许访问Redis

to:
namespaceSelector:matchLabels:name: cacheports:protocol: TCPport: 6379

允许DNS查询

to: []ports:
protocol: UDPport: 53

允许HTTPS出站流量

to: []ports:
protocol: TCPport: 443

---

Pod安全策略

apiVersion: policy/v1beta1kind: PodSecurityPolicymetadata:name: mcp-server-pspspec:privileged: falseallowPrivilegeEscalation: falserequiredDropCapabilities:- ALLvolumes:- 'configMap'- 'emptyDir'- 'projected'- 'secret'- 'downwardAPI'- 'persistentVolumeClaim'runAsUser:rule: 'MustRunAsNonRoot'seLinux:rule: 'RunAsAny'fsGroup:rule: 'RunAsAny'

<h2 id="BhEdI">7. 成本优化与资源管理</h2><h3 id="E3DWA">7.1 资源配额管理</h3>```yaml# k8s/resource-quota.yamlapiVersion: v1kind: ResourceQuotametadata:  name: mcp-production-quota  namespace: mcp-productionspec:  hard:    requests.cpu: "10"    requests.memory: 20Gi    limits.cpu: "20"    limits.memory: 40Gi    persistentvolumeclaims: "10"    pods: "20"    services: "10"    secrets: "20"    configmaps: "20"---apiVersion: v1kind: LimitRangemetadata:  name: mcp-production-limits  namespace: mcp-productionspec:  limits:  - default:      cpu: "1000m"      memory: "2Gi"    defaultRequest:      cpu: "500m"      memory: "1Gi"    type: Container  - max:      cpu: "2000m"      memory: "4Gi"    min:      cpu: "100m"      memory: "128Mi"    type: Container

7.2 自动扩缩容配置

```yaml# k8s/hpa.yamlapiVersion: autoscaling/v2kind: HorizontalPodAutoscalermetadata: name: mcp-server-hpa namespace: mcp-productionspec: scaleTargetRef: apiVersion: apps/v1 kind: Deployment name: mcp-server minReplicas: 2 maxReplicas: 10 metrics: - type: Resource resource: name: cpu target: type: Utilization averageUtilization: 70 - type: Resource resource: name: memory target: type: Utilization averageUtilization: 80 - type: Pods pods: metric: name: mcp_requests_per_second target: type: AverageValue averageValue: "100" behavior: scaleDown: stabilizationWindowSeconds: 300 policies: - type: Percent value: 50 periodSeconds: 60 scaleUp: stabilizationWindowSeconds: 60 policies: - type: Percent value: 100 periodSeconds: 60 - type: Pods value: 2 periodSeconds: 60

---

垂直扩缩容配置

apiVersion: autoscaling.k8s.io/v1kind: VerticalPodAutoscalermetadata:name: mcp-server-vpanamespace: mcp-productionspec:targetRef:apiVersion: apps/v1kind: Deploymentname: mcp-serverupdatePolicy:updateMode: "Auto"resourcePolicy:containerPolicies:- containerName: mcp-servermaxAllowed:cpu: "2"memory: "4Gi"minAllowed:cpu: "100m"memory: "128Mi"

<h2 id="yb7Hl">总结</h2>作为博主摘星，通过深入研究和实践企业级MCP部署的完整DevOps流程，我深刻认识到这不仅是一个技术实施过程，更是一个系统性的工程管理实践。在当今数字化转型的浪潮中，MCP作为AI应用的核心基础设施，其部署质量直接决定了企业AI能力的上限和业务创新的速度。从我多年的项目经验来看，成功的企业级MCP部署需要在架构设计、容器化实施、CI/CD流水线、监控运维等多个维度上精心规划和执行。本文详细介绍的从开发到生产的完整流程，不仅涵盖了技术实现的各个环节，更重要的是体现了现代DevOps理念在AI基础设施建设中的最佳实践。通过标准化的容器化部署、自动化的CI/CD流水线、全方位的监控体系和智能化的运维管理，我们能够构建出既稳定可靠又高效灵活的MCP服务平台。特别值得强调的是，安全性和合规性在企业级部署中的重要性不容忽视，从网络隔离到数据加密，从访问控制到审计日志，每一个环节都需要严格把控。同时，成本优化和资源管理也是企业级部署中必须考虑的现实问题，通过合理的资源配额、智能的自动扩缩容和有效的容量规划，我们可以在保证服务质量的前提下最大化资源利用效率。展望未来，随着AI技术的不断演进和企业数字化程度的持续提升，MCP部署的复杂性和重要性还将进一步增加，这也为我们技术人员提供了更多的挑战和机遇。我相信，通过持续的技术创新、流程优化和经验积累，我们能够构建出更加智能、安全、高效的企业级AI基础设施，为企业的数字化转型和智能化升级提供强有力的技术支撑，最终推动整个行业向更高水平发展。<h2 id="dhhQ1">参考资料</h2>1. [Kubernetes官方文档](https://kubernetes.io/docs/)2. [Docker最佳实践指南](https://docs.docker.com/develop/dev-best-practices/)3. [GitLab CI/CD文档](https://docs.gitlab.com/ee/ci/)4. [Prometheus监控指南](https://prometheus.io/docs/introduction/overview/)5. [Grafana可视化文档](https://grafana.com/docs/)6. [企业级DevOps实践](https://www.devops.com/enterprise-devops-best-practices/)7. [云原生安全最佳实践](https://www.cncf.io/blog/2021/11/12/cloud-native-security-best-practices/)8. [Kubernetes安全加固指南](https://kubernetes.io/docs/concepts/security/)---_本文由博主摘星原创，专注于AI基础设施与DevOps实践的深度分析。如有技术问题或合作需求，欢迎通过评论区或私信联系。_🌈_ 我是摘星！如果这篇文章在你的技术成长路上留下了印记：_👁️_ 【关注】与我一起探索技术的无限可能，见证每一次突破_👍_ 【点赞】为优质技术内容点亮明灯，传递知识的力量_🔖_ 【收藏】将精华内容珍藏，随时回顾技术要点_💬_ 【评论】分享你的独特见解，让思维碰撞出智慧火花_🗳️_【投票】用你的选择为技术社区贡献一份力量__技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！_
