Nexus-Gen是一款创新的统一模型，它巧妙地结合了大语言模型的推理能力与扩散模型的图像合成能力，旨在统一处理图像的理解、生成和编辑任务。通过构建一个统一的图像嵌入空间，Nexus-Gen能够在一个框架内实现多模态的交互。为了支持这种多任务的联合优化，研究团队精心整理了一个包含2630万样本的大规模数据集，并采用了多阶段的训练策略，包括自回归模型的多任务预训练以及针对生成和编辑解码器的条件适应。Nexus-Gen V2版本在图像理解、生成鲁棒性和编辑重建方面均有显著提升，并新增了对中文提示词的支持，为多模态AI领域带来了新的突破。

✨ **统一模型架构**：Nexus-Gen是一个创新的统一模型，它将大语言模型的语言推理能力与扩散模型的图像合成能力相结合，在一个统一的图像嵌入空间内处理图像的理解、生成和编辑等多种任务，实现了跨模态能力的融合。该模型的目标是通过单一框架处理广泛的视觉-语言任务，简化了多模态AI的应用。

📊 **大规模数据集与多阶段训练**：为了支持Nexus-Gen在多个任务上的联合优化，研究团队构建了一个包含2630万个样本的庞大数据集。训练过程采用了多阶段策略，首先对自回归模型进行多任务预训练，然后对生成和编辑解码器进行条件适应，这种精细的训练方法确保了模型在各项任务上的表现。

🚀 **V2版本性能升级**：Nexus-Gen V2在多个关键维度上进行了优化。通过改进训练计划，其图像理解能力显著提升（在MMMU测试中得分45.7）。长短描述的训练增强了图像生成的鲁棒性（GenEval得分0.81）。此外，V2版本还改进了图像编辑任务中的重建效果，并引入了对中文提示词的支持，进一步扩大了模型的可用性和用户群。

💻 **本地部署与环境要求**：文章详细介绍了Nexus-Gen的本地部署指南，包括Python版本（>=3.10）、必要的库（如PyTorch>=2.0.0, transformers）以及硬件要求——建议使用三张24GB显存的显卡以获得最佳性能。部署过程涵盖了Miniconda环境的创建、项目仓库的克隆、依赖项的安装以及模型文件的下载，为用户提供了详尽的安装步骤。

一、简介

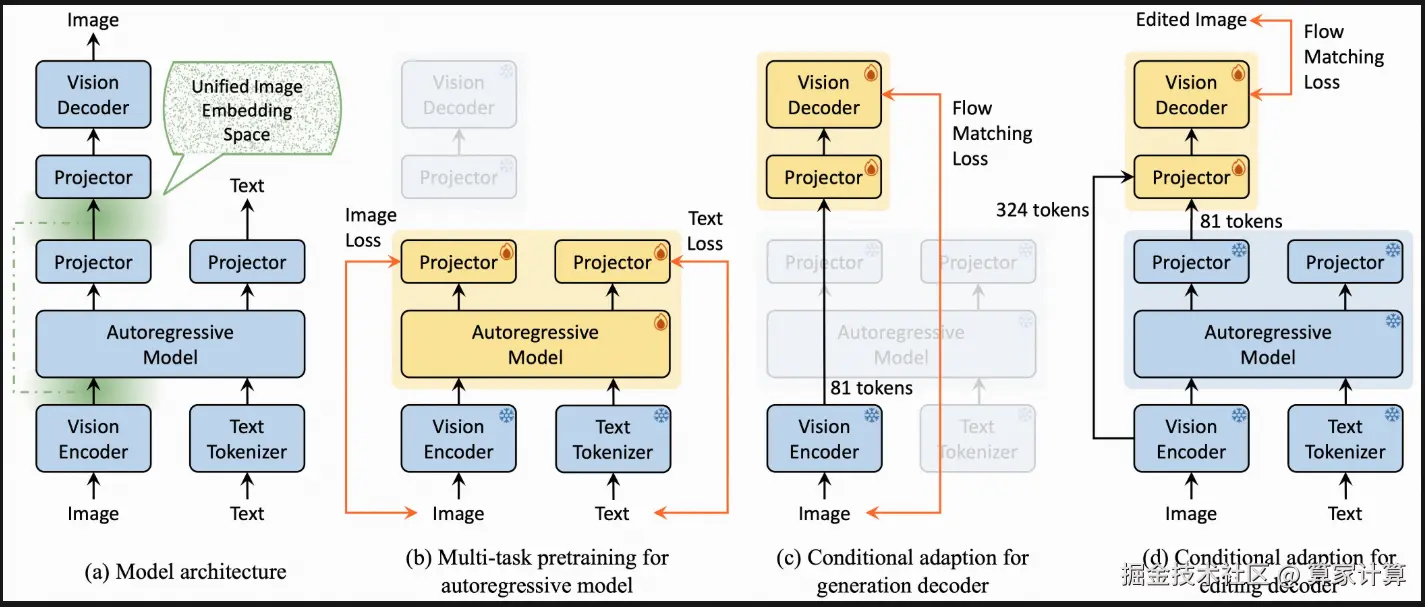

Nexus-Gen 是一个统一的模型，它结合了大语言模型的语言推理能力和扩散模型的图像合成能力。提出了一种统一的图像嵌入空间来建模图像理解、生成和编辑任务。为了在多个任务上进行联合优化，整理了一个包含 2630 万个样本的大规模数据集，并使用多阶段策略训练 Nexus-Gen，包括自回归模型的多任务预训练以及生成和编辑解码器的条件适应。

Nexus-Gen 的定性结果：

限制：请注意，Nexus-Gen 是在有限的文本到图像数据上训练的，可能对文本提示不够鲁棒。

更新动态

2025 年 7 月 11 日 : Nexus-Gen V2 发布 。更多详情请参阅技术报告。该模型从以下几个方面进行了优化：

通过优化训练计划，提升了图像理解能力（在 MMMU 上得分为 45.7 ）。通过长短描述的训练，增强了图像生成（在 GenEval 上得分为 0.81 ）的鲁棒性。在图像编辑任务中提升了重建效果。团队为 Nexus-Gen 提出了一个更好的编辑解码器。支持使用中文提示词进行生成和编辑。

2025 年 5 月 27 日 : 团队使用 BLIP-3o-60k 数据集对 Nexus-Gen 进行了微调，显著提高了模型在图像生

二、本地部署

环境	版本
Python	>= 3.10
controlnet-aux	== 0.0.7
PyTorch	>= 2.0.0
transformers	== 4.49.0

显卡要求：三张 24G 显存的显卡或者更高显存的显卡。

2.1.创建conda环境

2.1.1.安装 Miniconda

步骤 1：更新系统
更新您的系统软件包：

sudo apt updatesudo apt upgrade -y

步骤 2：下载 Miniconda 安装脚本
访问 Miniconda 的官方网站或使用以下命令直接下载最新版本的安装脚本（以 Python 3 为例）：

wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh

步骤 3：验证安装脚本的完整性（可忽略）
下载 SHA256 校验和文件并验证安装包的完整性：（比较输出的校验和与.sha256 文件中的值是否一致，确保文件未被篡改。）

wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh.sha256sha256sum Miniconda3-latest-Linux-x86_64.sh

步骤 4：运行安装脚本

为安装脚本添加执行权限：

chmod +x Miniconda3-latest-Linux-x86_64.sh

运行安装脚本：

./Miniconda3-latest-Linux-x86_64.sh

步骤 5：按照提示完成安装
在安装过程中，您需要：

阅读许可协议 ：按 Enter 键逐页阅读，或者按 Q 退出阅读。
接受许可协议 ：输入 yes 并按 Enter。
选择安装路径 ：默认路径为 “/home/您的用户名/miniconda3”，直接按 Enter 即可，或输入自定义路径。
是否初始化 Miniconda ：输入 yes 将 Miniconda 添加到您的 PATH 环境变量中。

步骤 6：激活 Miniconda 环境
安装完成后，使环境变量生效：

source ~/.bashrc

步骤 7：验证安装是否成功
检查 conda 版本：

conda --version

2.1.2.创建虚拟环境

创建新 conda 环境(环境名为 NexusGen ，可自主取名)，后续 python 库安装和 py 文件运行都在这个 conda 环境下进行

conda create -n NexusGen python=3.10 -y

conda activate NexusGen

2.2.克隆仓库

项目地址：github.com/modelscope/…

git clone https://github.com/modelscope/Nexus-Gen.git

会在使用以上命令的当前目录下自动创建文件夹Nexus-Gen。

2.3.安装依赖

之前导入的git库内部有 requirements.txt，但是不全面，经过整合需要以下配置(内容可另存requirements.txt)：

安装命令：pip install -r requirements.txt

注意：如果下载太慢，可以进行国内源替换（临时），基本所有python库单独或者 txt 集合下载都可以添加 源。

pip install -r requirements.txt -i <清华源 or 阿里源 等国内镜像源加速 python 库的下载>

e.g. pip install -r requirements.txt -i https://pypi.tuna.tsinghua.edu.cn/simple

以下是修改后的 requirements.txt

torch>=2.0.0torchvisioncupy-cuda12xtransformerscontrolnet-aux==0.0.7imageioimageio[ffmpeg]safetensorseinopssentencepieceprotobufmodelscopeftfypynvmlpandasaccelerateqwen_vl_utilsflash-attn （这个库需要在安装 torch 之后才能安装）transformers==4.49.0gradio

2.4.下载模型

之前 github.com/modelscope/… 克隆的文件夹内部有 download_models.py 文件，可以直接运行，运行之后，会在该文件同目录下自动创建 models 文件夹。然后再生成 Nexus-GenV2 和 FLUX 文件夹。

python download_models.py

download_models.py 文件内容：

from modelscope import snapshot_downloadsnapshot_download('DiffSynth-Studio/Nexus-GenV2', local_dir='models/Nexus-GenV2')flux_path = snapshot_download('black-forest-labs/FLUX.1-dev',    allow_file_pattern=[  "text_encoder/model.safetensors",   "text_encoder_2/*",   "ae.safetensors",],local_dir='models/FLUX/FLUX.1-dev')

三、启动

注意：之前下载的git仓库里面的 app.py 源码仅支持单卡运行，测试环境采用的是三张 4090 24G 显卡，所以 app.py 已经接受修改。

如果单卡显存足够大，可以忽略针对git克隆后文件夹内 app.py，editing_decoder.py，modules.py 修改。（editing_decoder.py 和 modules.py 在 “Nexus-Gen/modeling/decoder/” 目录下）

运行demo，出现 “Running on local URL” 字样就可以浏览器打开了

python app.py

以下是文件修改后启动项目的 demo UI:

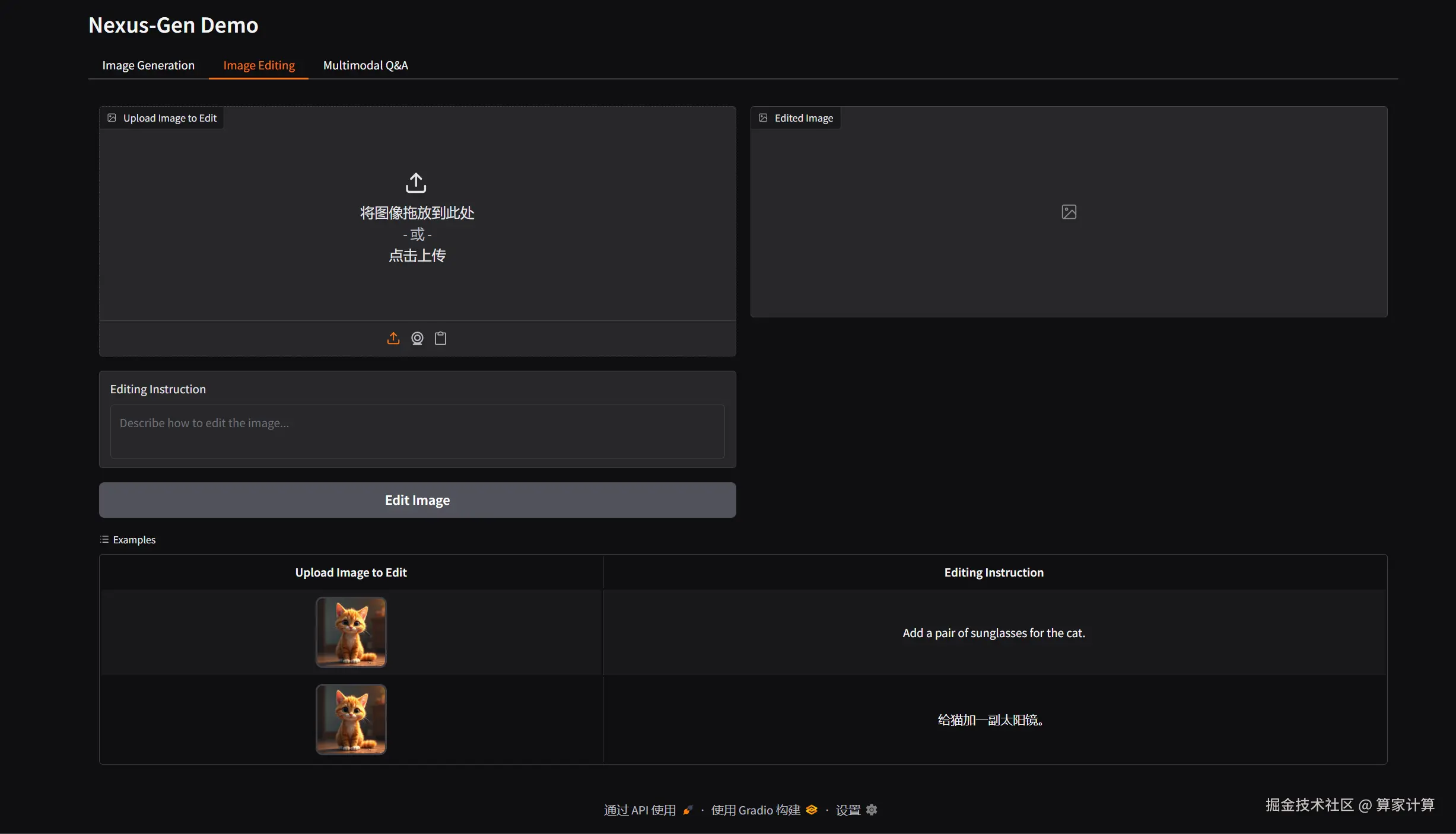

图像编辑

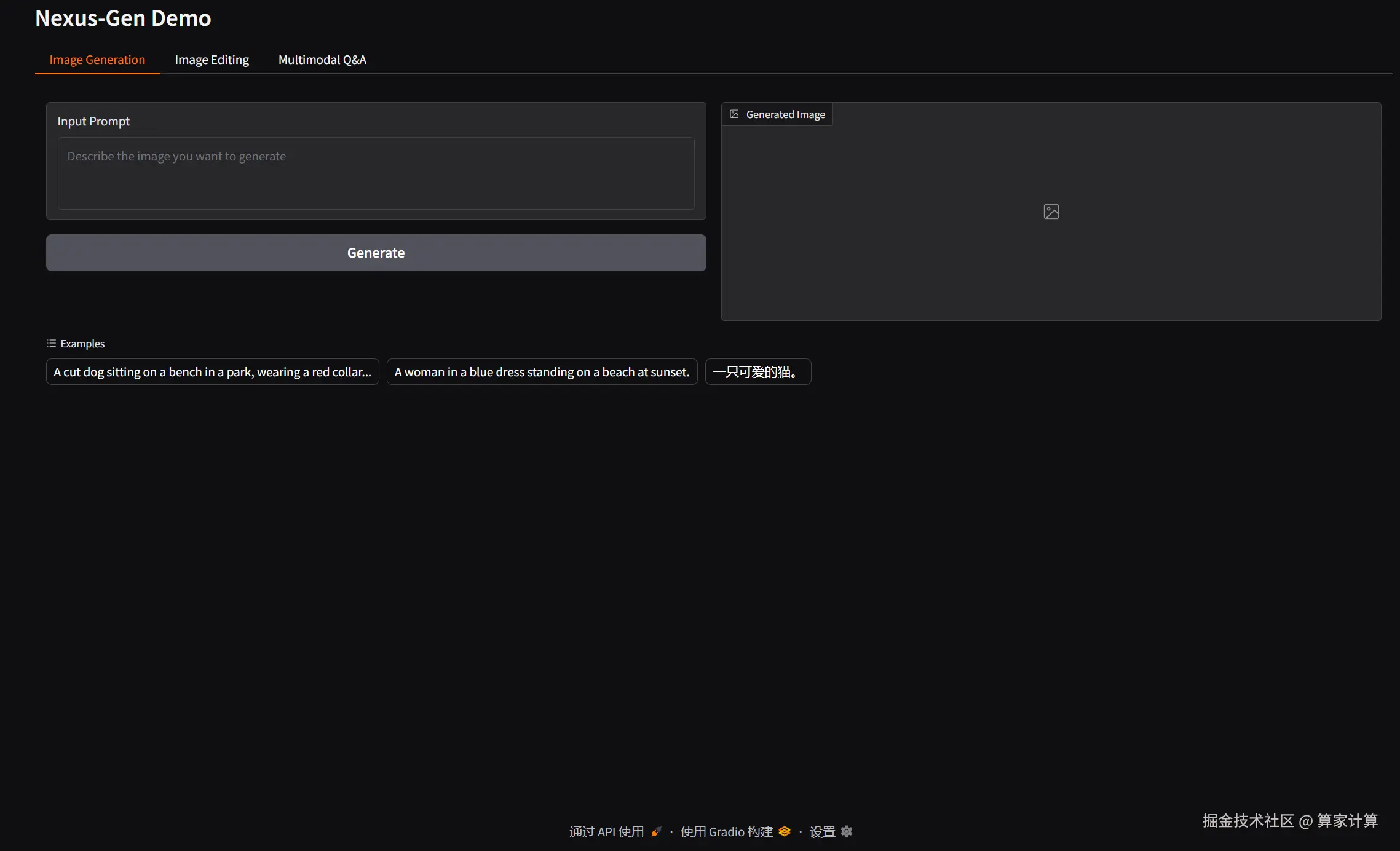

图像生成

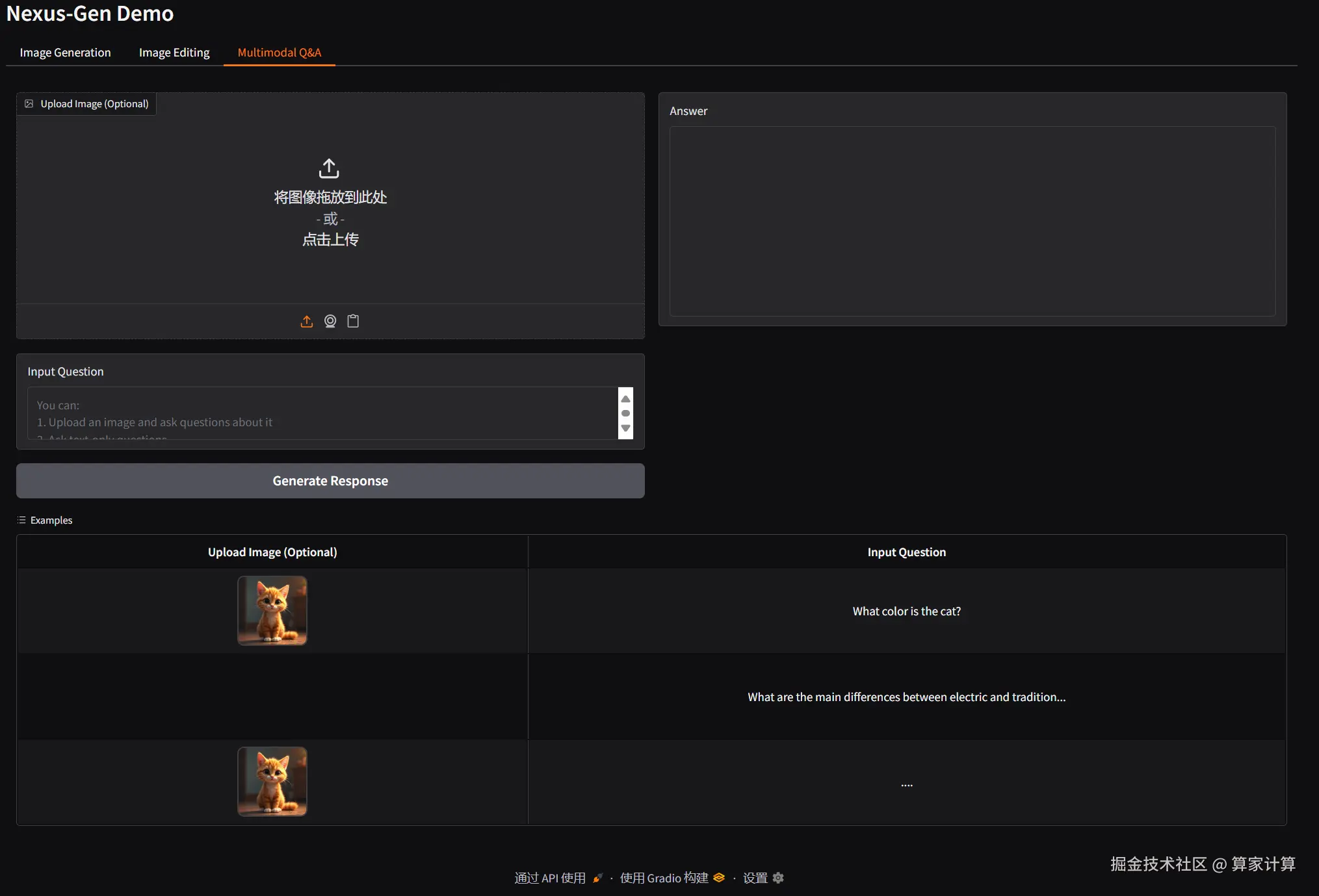

图像理解

四、注意事项

针对该 demo 使用 3 张 4090 24G 显存的显卡 进行 图片生成、图片理解、图片编辑 三项功能。源文件也做了相应修改，以下作为修改参考。

4.1.app.py 文件修改

原git上下载的 app.py 需要替换为以下内容。

import gradio as grimport torchfrom PIL import Imageimport osimport randomimport gcimport subprocessimport timeimport psutilfrom transformers import AutoConfigfrom qwen_vl_utils import process_vision_info, smart_resizefrom modeling.decoder.generation_decoder import NexusGenGenerationDecoderfrom modeling.decoder.editing_decoder import NexusGenEditingDecoderfrom modeling.ar.modeling_qwen2_5_vl import Qwen2_5_VLForConditionalGenerationfrom modeling.ar.processing_qwen2_5_vl import Qwen2_5_VLProcessorimport numpy as np# <--- 新增: DynamicCache兼容性修复 ---def patch_dynamic_cache_compatibility():    """修复DynamicCache兼容性问题"""    try:        from transformers.cache_utils import DynamicCache        if not hasattr(DynamicCache, 'is_compileable'):            DynamicCache.is_compileable = lambda self: False            print("✅ DynamicCache兼容性补丁已应用")    except Exception as e:        print(f"⚠️  DynamicCache补丁应用失败: {e}")# 立即应用兼容性补丁patch_dynamic_cache_compatibility()# --- 兼容性修复结束 ---# <--- 新增: 应用启动时的初始化清理 ---def initialize_clean_gpu_environment():    """应用启动时清理所有GPU残留"""    print("=" * 60)    print("🚀 Nexus-Gen 应用启动 - 初始化GPU环境")    print("=" * 60)      # 1. 显示启动前的GPU状态    print("📊 启动前GPU状态:")    if torch.cuda.is_available():        for i in range(torch.cuda.device_count()):            try:                allocated = torch.cuda.memory_allocated(i) / 1024**3                reserved = torch.cuda.memory_reserved(i) / 1024**3                print(f"   GPU {i}: 已分配 {allocated:.2f}GB, 已保留 {reserved:.2f}GB")            except:                print(f"   GPU {i}: 无法获取状态")      # 2. 安全清理残留进程（排除当前进程）    print("🔄 清理残留进程...")    try:        current_pid = os.getpid()          # 查找并终止其他Python进程，但排除当前进程        for proc in psutil.process_iter(['pid', 'name', 'cmdline']):            try:                if proc.info['pid'] != current_pid and proc.info['name'] and 'python' in proc.info['name'].lower():                    cmdline = ' '.join(proc.info['cmdline']) if proc.info['cmdline'] else ''                    # 只终止包含nexus或flux的进程，避免误杀其他Python程序                    if any(keyword in cmdline.lower() for keyword in ['nexus', 'flux', 'diffsynth']):                        print(f"   终止进程: PID {proc.info['pid']} - {cmdline[:50]}...")                        proc.terminate()                        proc.wait(timeout=3)            except (psutil.NoSuchProcess, psutil.AccessDenied, psutil.TimeoutExpired):                continue          time.sleep(1)  # 等待进程完全终止        print("   ✅ 残留进程清理完成")    except ImportError:        print("   ⚠️  psutil未安装，跳过进程清理")    except Exception as e:        print(f"   ⚠️  进程清理警告: {e}")      # 3. 强制清理所有GPU显存    print("🧹 强制清理GPU显存...")    if torch.cuda.is_available():        try:            # 清理PyTorch缓存            for i in range(torch.cuda.device_count()):                with torch.cuda.device(i):                    torch.cuda.empty_cache()                    torch.cuda.ipc_collect()              # 强制垃圾回收            gc.collect()              time.sleep(1)  # 等待清理完成            print("   ✅ GPU显存清理完成")          except Exception as e:            print(f"   ⚠️  GPU清理警告: {e}")      # 4. 显示清理后的GPU状态    print("📊 清理后GPU状态:")    if torch.cuda.is_available():        for i in range(torch.cuda.device_count()):            try:                allocated = torch.cuda.memory_allocated(i) / 1024**3                reserved = torch.cuda.memory_reserved(i) / 1024**3                print(f"   GPU {i}: 已分配 {allocated:.2f}GB, 已保留 {reserved:.2f}GB")            except:                print(f"   GPU {i}: 无法获取状态")      print("✨ GPU环境初始化完成，开始加载模型...")    print("=" * 60)# 立即执行初始化清理initialize_clean_gpu_environment()# --- 初始化清理结束 ---def bound_image(image, max_pixels=262640):    resized_height, resized_width = smart_resize(        image.height,        image.width,        max_pixels=max_pixels,    )    return image.resize((resized_width, resized_height))# <--- 新增: 显存管理函数 ---def clear_gpu_memory():    """清理所有GPU显存"""    if torch.cuda.is_available():        for i in range(torch.cuda.device_count()):            with torch.cuda.device(i):                torch.cuda.empty_cache()        gc.collect()def print_gpu_memory():    """打印GPU显存使用情况"""    if torch.cuda.is_available():        for i in range(torch.cuda.device_count()):            allocated = torch.cuda.memory_allocated(i) / 1024**3            reserved = torch.cuda.memory_reserved(i) / 1024**3            print(f"GPU {i}: 已分配 {allocated:.2f}GB, 已保留 {reserved:.2f}GB")# --- 显存管理函数结束 ---# Initialize model and processormodel_path = 'models/Nexus-GenV2'model_config = AutoConfig.from_pretrained(model_path, trust_remote_code=True)# <--- 修改: 真正的组件分片策略 ---print("🎯 组件分片策略:")print("   📍 cuda:0: 图像理解专用 (主模型)")print("   📍 cuda:1: 延迟加载生成&编辑解码器")print("   📍 cuda:2: 延迟加载生成&编辑解码器")print("=" * 60)# 主模型只加载到cuda:0，专门用于图像理解understanding_device = "cuda:0"# --- 组件分片策略结束 ---# <--- 修改: 主模型只加载到cuda:0 ---print("📦 加载主模型 (Qwen2.5-VL) 到 cuda:0 专用于图像理解...")model = Qwen2_5_VLForConditionalGeneration.from_pretrained(    model_path,    config=model_config,    trust_remote_code=True,    torch_dtype="auto",    device_map=understanding_device,  # 只加载到cuda:0)processor = Qwen2_5_VLProcessor.from_pretrained(model_path, trust_remote_code=True)model.eval()print(f"✅ 主模型已加载到 {understanding_device}")print_gpu_memory()# --- 主模型加载结束 ---# Initialize Flux Decoder pathsflux_path = "models"generation_decoder_path = "models/Nexus-GenV2/generation_decoder.bin"editing_decoder_path = "models/Nexus-GenV2/edit_decoder.bin"# <--- 修改: 真正的延迟加载和组件分片 ---print("📦 设置延迟加载策略 - 避免初始化时显存溢出...")# 全局解码器变量generation_decoder = Noneediting_decoder = Nonecurrent_task = None  # 跟踪当前任务类型def clear_all_decoders():    """清理所有解码器"""    global generation_decoder, editing_decoder      if generation_decoder is not None:        del generation_decoder        generation_decoder = None        print("   🗑️  图像生成解码器已释放")      if editing_decoder is not None:        del editing_decoder        editing_decoder = None        print("   🗑️  图像编辑解码器已释放")      # 清理cuda:1和cuda:2的显存    for device_id in [1, 2]:        if torch.cuda.is_available() and device_id < torch.cuda.device_count():            with torch.cuda.device(device_id):                torch.cuda.empty_cache()      gc.collect()    print("   ✅ 所有解码器已清理")def get_generation_decoder():    """延迟初始化图像生成解码器"""    global generation_decoder, current_task      # 如果当前不是生成任务，先清理其他解码器    if current_task != "generation":        clear_all_decoders()        current_task = "generation"      if generation_decoder is None:        print("📦 初始化图像生成解码器 (cuda:1)...")        try:            generation_decoder = NexusGenGenerationDecoder(                generation_decoder_path,                 flux_path,                 device="cuda:1",  # 只使用cuda:1                enable_cpu_offload=True  # 启用CPU offload节省显存            )            print("✅ 图像生成解码器已加载到 cuda:1")            print_gpu_memory()        except Exception as e:            print(f"❌ 图像生成解码器加载失败: {e}")            # 如果cuda:1显存不足，尝试使用CPU offload            try:                generation_decoder = NexusGenGenerationDecoder(                    generation_decoder_path,                     flux_path,                     device="cpu",  # 降级到CPU                    enable_cpu_offload=True                )                print("⚠️  图像生成解码器已降级到CPU")            except Exception as e2:                print(f"❌ CPU降级也失败: {e2}")                raise e2      return generation_decoderdef get_editing_decoder():    """延迟初始化图像编辑解码器"""    global editing_decoder, current_task      # 如果当前不是编辑任务，先清理其他解码器    if current_task != "editing":        clear_all_decoders()        current_task = "editing"      if editing_decoder is None:        print("📦 初始化图像编辑解码器 (cuda:2)...")        try:            editing_decoder = NexusGenEditingDecoder(                editing_decoder_path,                 flux_path,                 model_path,                 device="cuda:2",  # 只使用cuda:2                enable_cpu_offload=True  # 启用CPU offload节省显存            )            print("✅ 图像编辑解码器已加载到 cuda:2")            print_gpu_memory()        except Exception as e:            print(f"❌ 图像编辑解码器加载失败: {e}")            # 如果cuda:2显存不足，尝试使用CPU offload            try:                editing_decoder = NexusGenEditingDecoder(                    editing_decoder_path,                     flux_path,                     model_path,                     device="cpu",  # 降级到CPU                    enable_cpu_offload=True                )                print("⚠️  图像编辑解码器已降级到CPU")            except Exception as e2:                print(f"❌ CPU降级也失败: {e2}")                raise e2      return editing_decoderprint("✅ 延迟加载策略设置完成")# --- 延迟加载策略结束 ---# Define system promptSYSTEM_PROMPT = "You are a helpful assistant."def image_understanding(image, question):    """图像理解功能 - 专用cuda:0"""    print("=== 开始图像理解任务 (专用cuda:0) ===")      # 确保其他任务的解码器被清理    global current_task    if current_task != "understanding":        clear_all_decoders()        current_task = "understanding"      print_gpu_memory()      if image is not None:        # Convert numpy array to PIL Image        if isinstance(image, np.ndarray):            image = Image.fromarray(image)        messages = [            {                "role": "system",                "content": SYSTEM_PROMPT            },            {                "role": "user",                "content": [                    {                        "type": "image",                        "image": image,                    },                    {"type": "text", "text": question if question else "Please give a brief description of the image."},                ],            }        ]    else:        # Text-only Q&A mode        messages = [            {                "role": "system",                "content": SYSTEM_PROMPT            },            {                "role": "user",                "content": [                    {"type": "text", "text": question},                ],            }        ]    # Preparation for inference    text = processor.apply_chat_template(        messages, tokenize=False, add_generation_prompt=True    )    if image is not None:        image_inputs, _ = process_vision_info(messages)        image_inputs = [bound_image(image) for image in image_inputs]        inputs = processor(            text=[text],            images=image_inputs,            padding=True,            return_tensors="pt",        )    else:        inputs = processor(            text=[text],            padding=True,            return_tensors="pt",        )    inputs = inputs.to(understanding_device)    # <--- 兼容性修复 ---    with torch.no_grad():        # 设置模型为非编译模式，避免DynamicCache问题        if hasattr(model, '_dynamo_compile'):            model._dynamo_compile = False          generated_ids = model.generate(            **inputs,             max_new_tokens=1024,            do_sample=True,  # 禁用采样以提高稳定性 （废弃）            use_cache=True,            pad_token_id=processor.tokenizer.eos_token_id        )    # --- 兼容性修复结束 ---      generated_ids_trimmed = [        out_ids[len(in_ids):] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)    ]    output_text = processor.batch_decode(        generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False    )      print("=== 图像理解任务完成 ===")    print_gpu_memory()      return output_text[0]def image_generation(prompt):    """图像生成功能 - 使用cuda:1"""    print("=== 开始图像生成任务 (cuda:1) ===")    print_gpu_memory()      generation_instruction = 'Generate an image according to the following description: {}'    prompt = generation_instruction.format(prompt)    messages = [{"role": "user", "content": [{"type": "text", "text": prompt}]}]    text = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)    inputs = processor(text=[text], padding=True, return_tensors="pt")    inputs = inputs.to(understanding_device)  # 先在cuda:0上处理    generation_image_grid_thw = torch.tensor([[1, 18, 18]]).to(understanding_device)    # <--- 兼容性修复 ---    with torch.no_grad():        if hasattr(model, '_dynamo_compile'):            model._dynamo_compile = False          outputs = model.generate(            **inputs,             max_new_tokens=1024,             return_dict_in_generate=True,             generation_image_grid_thw=generation_image_grid_thw,            do_sample=True,            use_cache=True,            pad_token_id=processor.tokenizer.eos_token_id        )    # --- 兼容性修复结束 ---    if not hasattr(outputs, 'output_image_embeddings'):        raise ValueError("Failed to generate image embeddings")    else:        output_image_embeddings = outputs.output_image_embeddings      # 获取生成解码器并生成图像    decoder = get_generation_decoder()    seed = random.randint(0, 10000)    image = decoder.decode_image_embeds(output_image_embeddings, cfg_scale=3.0, seed=seed)      print("=== 图像生成任务完成 ===")    print_gpu_memory()      return imagedef get_image_embedding(vision_encoder, processor, image, target_size=(504, 504)):    image = image.resize(target_size, Image.BILINEAR)    inputs = processor.image_processor(images=[image], videos=None, return_tensors='pt', do_resize=False)      device = vision_encoder.device    pixel_values = inputs["pixel_values"].to(device)    image_grid_thw = inputs["image_grid_thw"].to(device)    pixel_values = pixel_values.type(vision_encoder.dtype)      with torch.no_grad():        image_embeds = vision_encoder(pixel_values, grid_thw=image_grid_thw)    return image_embedsdef image_editing(image, instruction):    """图像编辑功能 - 使用cuda:2"""    print("=== 开始图像编辑任务 (cuda:2) ===")    print_gpu_memory()      if '<image>' not in instruction:        instruction = '<image> ' + instruction    instruction = instruction.replace('<image>', '<|vision_start|><|image_pad|><|vision_end|>')    messages = [{"role": "user", "content": [{"type": "text", "text": instruction}]}]    text = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)      # Convert numpy array to PIL Image if needed    input_image = Image.fromarray(image) if not isinstance(image, Image.Image) else image    bounded_image = bound_image(input_image)    inputs = processor(        text=[text],        images=[bounded_image],        padding=True,        return_tensors="pt",    )    inputs = inputs.to(understanding_device)  # 先在cuda:0上处理    generation_image_grid_thw = torch.tensor([[1, 18, 18]]).to(understanding_device)    # <--- 兼容性修复 ---    with torch.no_grad():        if hasattr(model, '_dynamo_compile'):            model._dynamo_compile = False          outputs = model.generate(            **inputs,             max_new_tokens=1024,             return_dict_in_generate=True,             generation_image_grid_thw=generation_image_grid_thw,            do_sample=True,            use_cache=True,            pad_token_id=processor.tokenizer.eos_token_id        )    # --- 兼容性修复结束 ---      if not hasattr(outputs, 'output_image_embeddings'):        raise ValueError("Failed to generate image embeddings")    else:        output_image_embeddings = outputs.output_image_embeddings      # 获取参考图像嵌入    ref_embeddings = get_image_embedding(model.visual, processor, input_image, target_size=(504, 504))      # 获取编辑解码器并编辑图像    decoder = get_editing_decoder()    edited_image = decoder.decode_image_embeds(output_image_embeddings, ref_embed=ref_embeddings, cfg_scale=1.0)      print("=== 图像编辑任务完成 ===")    print_gpu_memory()      return edited_imagedef edit_with_instruction(image, instruction):    return image_editing(image, instruction)def understand_with_image(image, question):    return image_understanding(image, question)# Create Gradio interfacewith gr.Blocks(title="Nexus-Gen Demo") as demo:    gr.Markdown("# Nexus-Gen Demo")    with gr.Tab("Image Generation"):        with gr.Row():            with gr.Column():                prompt_input = gr.Textbox(label="Input Prompt", lines=3, placeholder="Describe the image you want to generate")                generate_btn = gr.Button("Generate") # , variant="primary"              with gr.Column():                output_image = gr.Image(label="Generated Image") # , type="pil"          def generate_with_option(prompt):            return image_generation(prompt)        generate_btn.click(            fn=generate_with_option,            inputs=[prompt_input], #  , option_dropdown            outputs=[output_image] # output_text        )        gr.Examples(            examples=[                "A cut dog sitting on a bench in a park, wearing a red collar.",                "A woman in a blue dress standing on a beach at sunset.",                "一只可爱的猫。"            ],            inputs=[prompt_input],            outputs=[output_image],            fn=generate_with_option,            cache_examples=False,        )      with gr.Tab("Image Editing"):        with gr.Row():            with gr.Column():                input_image = gr.Image(label="Upload Image to Edit") # , type="numpy"                edit_instruction = gr.Textbox(label="Editing Instruction", lines=2, placeholder="Describe how to edit the image...")                edit_btn = gr.Button("Edit Image") # , variant="primary"              with gr.Column():                edited_image = gr.Image(label="Edited Image") # , type="pil"          edit_btn.click(            fn=edit_with_instruction,            inputs=[input_image, edit_instruction],            outputs=[edited_image]        )        gr.Examples(            examples=[                ["assets/examples/cat.png", "Add a pair of sunglasses for the cat."],                ["assets/examples/cat.png", "给猫加一副太阳镜。"],            ],            inputs=[input_image, edit_instruction],            outputs=edited_image,            fn=edit_with_instruction,            cache_examples=False,        )      with gr.Tab("Multimodal Q&A"):        with gr.Row():            with gr.Column():                qa_image = gr.Image(label="Upload Image (Optional)")# type="numpy"                qa_question = gr.Textbox(label="Input Question", lines=2, placeholder="You can:\n1. Upload an image and ask questions about it\n2. Ask text-only questions\n3. Upload an image without a question for automatic description")                qa_btn = gr.Button("Generate Response") # , variant="primary"              with gr.Column():                qa_answer = gr.Textbox(label="Answer", lines=10)          qa_btn.click(            fn=understand_with_image,            inputs=[qa_image, qa_question],            outputs=[qa_answer]        )        # 例子        gr.Examples(            examples=[                # Visual Q&A examples                ["assets/examples/cat.png", "What color is the cat?"],                # Text Q&A examples                [None, "What are the main differences between electric and traditional fuel vehicles?"],                # Image description example                ["assets/examples/cat.png", "...."],            ],            inputs=[qa_image, qa_question],            outputs=[qa_answer],            fn=understand_with_image,            cache_examples=False,        )if __name__ == "__main__":    print_gpu_memory()    print("🌐 启动Web界面...")    print("=" * 60)      demo.launch(server_name="0.0.0.0", server_port=8080) # , share=True

4.2.editing_decoder.py 文件修改

经过GPU组分配计算流程和资源，可以运行图像编辑，但模型本身不保证长期稳定性和出图质量。可以复制以下文件替换原先git仓库下载的editing_decoder.py 文件。

import torchfrom diffsynth import ModelManagerfrom diffsynth.models.utils import load_state_dictfrom diffsynth.models.flux_dit import FluxDiTfrom modeling.decoder.modules import ImageEmbeddingMergerfrom transformers import AutoConfigfrom .pipelines import NexusGenEditingPipelineclass FluxDiTStateDictConverter:    def __init__(self):        pass    def from_diffusers(self, state_dict):        return state_dictdef state_dict_converter():    return FluxDiTStateDictConverter()class NexusGenEditingDecoder:    def __init__(self, decoder_path, flux_path, qwenvl_path, device='cuda', torch_dtype=torch.bfloat16, enable_cpu_offload=False, fp8_quantization=False):        self.device = device        self.torch_dtype = torch_dtype        self.enable_cpu_offload = enable_cpu_offload        self.fp8_quantization = fp8_quantization        self.pipe, self.embedding_merger = self.get_pipe(decoder_path, flux_path, qwenvl_path, device, torch_dtype)    def get_pipe(self, decoder_path, flux_path, qwenvl_path, device="cuda", torch_dtype=torch.bfloat16):        # 🔧 强制启用CPU offload以节省显存        print("🔧 强制启用CPU offload模式 (简化负载均衡版)")          # 强制使用CPU作为基础设备        model_manager = ModelManager(torch_dtype=torch_dtype, device='cpu')          # 分批加载模型并确保在CPU上        model_paths = [            f"{flux_path}/FLUX/FLUX.1-dev/text_encoder/model.safetensors",            f"{flux_path}/FLUX/FLUX.1-dev/text_encoder_2",             f"{flux_path}/FLUX/FLUX.1-dev/ae.safetensors",        ]          print("📦 分批加载FLUX模型组件到CPU...")        for i, model_path in enumerate(model_paths):            print(f"   加载组件 {i+1}/3: {model_path.split('/')[-1]} -> CPU")            model_manager.load_models([model_path])              # 🔧 确保所有模型都在CPU上            for model in model_manager.model:                if hasattr(model, 'to'):                    model.to('cpu')                    print(f"     ✅ 模型已移至CPU")              # 清理GPU缓存            torch.cuda.empty_cache()          print("✅ FLUX模型组件已全部加载到CPU")        # 加载解码器权重        state_dict = load_state_dict(decoder_path)        dit_state_dict = {key.replace("pipe.dit.", ""): value for key, value in state_dict.items() if key.startswith('pipe.dit.')}        embedding_merger_state_dict = {key.replace("embedding_merger.", ""): value for key, value in state_dict.items() if key.startswith('embedding_merger.')}        # 🔧 ImageEmbeddingMerger保持在cuda:2        model_config = AutoConfig.from_pretrained(qwenvl_path, trust_remote_code=True)        print("📦 初始化ImageEmbeddingMerger (cuda:2)...")          embedding_merger = ImageEmbeddingMerger(            model_config,             num_layers=1,             out_channel=4096,             expand_ratio=4,  # 保持原始值以兼容权重            device="cuda:2"  # 明确指定cuda:2        )          # 🔧 启用更激进的分块处理以节省显存        embedding_merger.set_chunked_processing(            enabled=True,             chunk_size=32,  # 更小的chunk            projector_chunk_size=8  # 更小的projector chunk        )          # 加载权重        print("📦 加载ImageEmbeddingMerger权重...")        try:            embedding_merger.load_state_dict(embedding_merger_state_dict)            print("✅ ImageEmbeddingMerger权重加载成功")        except Exception as e:            print(f"❌ 权重加载失败: {e}")            raise e          embedding_merger.to("cuda:2", dtype=torch_dtype)        print("✅ ImageEmbeddingMerger已移至 cuda:2")        # 🔧 关键修改：DiT模型加载到cuda:1而不是cuda:2        print("📦 加载DiT模型到 cuda:1 (负载均衡)...")        FluxDiT.state_dict_converter = staticmethod(state_dict_converter)        model_manager.load_model_from_single_file(            decoder_path,             state_dict=dit_state_dict,             model_names=['flux_dit'],             model_classes=[FluxDiT],             model_resource='diffusers'        )          # 🔧 将DiT模型移动到cuda:1        dit_torch_dtype = torch_dtype if not self.fp8_quantization else torch.float8_e4m3fn        dit_model = model_manager.model[-1]  # 最后加载的是DiT模型        dit_model.to("cuda:1", dtype=dit_torch_dtype)  # 移动到cuda:1        print("✅ DiT模型已移至 cuda:1")        # 🔧 创建pipeline，指定device为cuda:1（DiT所在设备）        print("📦 创建pipeline (cuda:1)...")        pipe = NexusGenEditingPipeline.from_model_manager(model_manager, device="cuda:1")          # 🔧 强制启用CPU offload        print("🔄 启用pipeline CPU offload...")        pipe.enable_cpu_offload()          if self.fp8_quantization:            print("🔄 启用FP8量化...")            pipe.dit.quantize()        # 🔧 验证负载均衡状态        self._verify_load_balance()        return pipe, embedding_merger      def _verify_load_balance(self):        """验证负载均衡状态"""        print("🔍 验证负载均衡状态:")          for device_name in ["cuda:1", "cuda:2"]:            if torch.cuda.is_available():                device_idx = int(device_name.split(':')[1])                allocated = torch.cuda.memory_allocated(device_idx) / 1024**3                reserved = torch.cuda.memory_reserved(device_idx) / 1024**3                print(f"   {device_name}: 已分配 {allocated:.2f}GB, 已保留 {reserved:.2f}GB")          print("✅ 负载均衡验证完成")    @torch.no_grad()    def decode_image_embeds(self,                            embed,                            ref_embed=None,                            embeds_grid=torch.tensor([[1, 18, 18]]),                            ref_embeds_grid=torch.tensor([[1, 36, 36]]),                            height=512,                            width=512,                            num_inference_steps=50,                            seed=42,                            negative_prompt="",                            cfg_scale=1.0,                            embedded_guidance=3.5,                            **pipe_kwargs):          # 🔧 显存监控和清理        def print_memory_usage(stage):            print(f"   📊 {stage}:")            for device_name in ["cuda:1", "cuda:2"]:                if torch.cuda.is_available():                    device_idx = int(device_name.split(':')[1])                    allocated = torch.cuda.memory_allocated(device_idx) / 1024**3                    reserved = torch.cuda.memory_reserved(device_idx) / 1024**3                    print(f"     {device_name}: 已分配 {allocated:.2f}GB, 已保留 {reserved:.2f}GB")          print("🔄 开始图像解码 (简化负载均衡版)")        print_memory_usage("解码开始")          # 🔧 数据准备在cuda:2（ImageEmbeddingMerger所在设备）        embeds_grid = embeds_grid.to(device="cuda:2", dtype=torch.long)        ref_embeds_grid = ref_embeds_grid.to(device="cuda:2", dtype=torch.long)        embed = embed.unsqueeze(0) if len(embed.size()) == 2 else embed        embed = embed.to(device="cuda:2", dtype=self.torch_dtype)        ref_embed = ref_embed.unsqueeze(0) if ref_embed is not None and len(ref_embed.size()) == 2 else ref_embed        ref_embed = ref_embed.to(device="cuda:2", dtype=self.torch_dtype) if ref_embed is not None else None        print_memory_usage("数据转移到cuda:2完成")          # 🔧 动态调整分块大小以进一步节省显存        total_tokens = embed.shape[1]        if ref_embed is not None:            total_tokens += ref_embed.shape[1]          if total_tokens > 300:            # 大尺寸输入使用超小chunk            self.embedding_merger.set_chunked_processing(                enabled=True,                 chunk_size=16,                 projector_chunk_size=4            )            print(f"🔧 大尺寸输入检测 ({total_tokens} tokens)，使用超小chunk")        else:            # 中等尺寸输入使用小chunk            self.embedding_merger.set_chunked_processing(                enabled=True,                 chunk_size=32,                 projector_chunk_size=8            )          # 🔧 在cuda:2上执行嵌入合并        print("🔄 执行嵌入合并 (cuda:2)...")        visual_emb = self.embedding_merger(embed, embeds_grid, ref_embed, ref_embeds_grid)        visual_emb = visual_emb.to(device="cuda:2", dtype=self.torch_dtype)          # 清理输入数据        del embed, ref_embed        with torch.cuda.device("cuda:2"):            torch.cuda.empty_cache()        print_memory_usage("嵌入合并完成")        # 🔧 关键修改：将visual_emb转移到cuda:1（DiT所在设备）        print("🔄 转移visual_emb: cuda:2 -> cuda:1")        visual_emb = visual_emb.to("cuda:1")          # 清理cuda:2的缓存        with torch.cuda.device("cuda:2"):            torch.cuda.empty_cache()          print_memory_usage("数据转移到cuda:1完成")        # 🔧 在cuda:1上执行diffusion pipeline        print("🔄 执行diffusion pipeline (cuda:1)...")        image = self.pipe(prompt="",                          image_embed=visual_emb,                          num_inference_steps=num_inference_steps,                          embedded_guidance=embedded_guidance,                          negative_prompt=negative_prompt,                          cfg_scale=cfg_scale,                          height=height,                          width=width,                          seed=seed,                          **pipe_kwargs)          # 最终清理        del visual_emb        with torch.cuda.device("cuda:1"):            torch.cuda.empty_cache()        print_memory_usage("解码完成")          print("✅ 简化负载均衡图像解码完成")        return image

4.3.modules.py 文件修改

同理，加载模型和后续推理计算采用不同cuda，避免显存占用完报出异常。

import mathimport torchimport torch.nn as nnfrom typing import Optional, Tuplefrom transformers.activations import ACT2FNfrom transformers.modeling_rope_utils import _compute_default_rope_parametersdef rotate_half(x):    """Rotates half the hidden dims of the input."""    x1 = x[..., : x.shape[-1] // 2]    x2 = x[..., x.shape[-1] // 2 :]    return torch.cat((-x2, x1), dim=-1)def apply_multimodal_rotary_pos_emb(q, k, cos, sin, mrope_section, unsqueeze_dim=1):    mrope_section = mrope_section * 2    cos = torch.cat([m[i % 3] for i, m in enumerate(cos.split(mrope_section, dim=-1))], dim=-1).unsqueeze(        unsqueeze_dim    )    sin = torch.cat([m[i % 3] for i, m in enumerate(sin.split(mrope_section, dim=-1))], dim=-1).unsqueeze(        unsqueeze_dim    )    q_embed = (q * cos) + (rotate_half(q) * sin)    k_embed = (k * cos) + (rotate_half(k) * sin)    return q_embed, k_embedclass Qwen2_5_VLRotaryEmbedding(nn.Module):    def __init__(self, config, device=None):        super().__init__()        # BC: "rope_type" was originally "type"        if hasattr(config, "rope_scaling") and config.rope_scaling is not None:            self.rope_type = config.rope_scaling.get("rope_type", config.rope_scaling.get("type"))        else:            self.rope_type = "default"        self.max_seq_len_cached = config.max_position_embeddings        self.original_max_seq_len = config.max_position_embeddings        self.config = config        self.rope_init_fn = _compute_default_rope_parameters        inv_freq, self.attention_scaling = self.rope_init_fn(self.config, device)        self.register_buffer("inv_freq", inv_freq, persistent=False)        self.original_inv_freq = self.inv_freq    def _dynamic_frequency_update(self, position_ids, device):        """        dynamic RoPE layers should recompute `inv_freq` in the following situations:        1 - growing beyond the cached sequence length (allow scaling)        2 - the current sequence length is in the original scale (avoid losing precision with small sequences)        """        seq_len = torch.max(position_ids) + 1        if seq_len > self.max_seq_len_cached:  # growth            inv_freq, self.attention_scaling = self.rope_init_fn(                self.config, device, seq_len=seq_len, **self.rope_kwargs            )            self.register_buffer("inv_freq", inv_freq, persistent=False)  # TODO joao: may break with compilation            self.max_seq_len_cached = seq_len        if seq_len < self.original_max_seq_len and self.max_seq_len_cached > self.original_max_seq_len:  # reset            self.register_buffer("inv_freq", self.original_inv_freq, persistent=False)            self.max_seq_len_cached = self.original_max_seq_len    @torch.no_grad()    def forward(self, x, position_ids):        if "dynamic" in self.rope_type:            self._dynamic_frequency_update(position_ids, device=x.device)        # Core RoPE block. In contrast to other models, Qwen2_5_VL has different position ids for the grids        # So we expand the inv_freq to shape (3, ...)        inv_freq_expanded = self.inv_freq[None, None, :, None].float().expand(3, position_ids.shape[1], -1, 1)        position_ids_expanded = position_ids[:, :, None, :].float()  # shape (3, bs, 1, positions)        # Force float32 (see https://github.com/huggingface/transformers/pull/29285)        device_type = x.device.type        device_type = device_type if isinstance(device_type, str) and device_type != "mps" else "cpu"        with torch.autocast(device_type=device_type, enabled=False):            freqs = (inv_freq_expanded.float() @ position_ids_expanded.float()).transpose(2, 3)            emb = torch.cat((freqs, freqs), dim=-1)            cos = emb.cos()            sin = emb.sin()        # Advanced RoPE types (e.g. yarn) apply a post-processing scaling factor, equivalent to scaling attention        cos = cos * self.attention_scaling        sin = sin * self.attention_scaling        return cos.to(dtype=x.dtype), sin.to(dtype=x.dtype)def repeat_kv(hidden_states: torch.Tensor, n_rep: int) -> torch.Tensor:    """    This is the equivalent of torch.repeat_interleave(x, dim=1, repeats=n_rep). The hidden states go from (batch,    num_key_value_heads, seqlen, head_dim) to (batch, num_attention_heads, seqlen, head_dim)    """    batch, num_key_value_heads, slen, head_dim = hidden_states.shape    if n_rep == 1:        return hidden_states    hidden_states = hidden_states[:, :, None, :, :].expand(batch, num_key_value_heads, n_rep, slen, head_dim)    return hidden_states.reshape(batch, num_key_value_heads * n_rep, slen, head_dim)class Qwen2_5_VLAttention(nn.Module):    def __init__(self, config, layer_idx: Optional[int] = None):        super().__init__()        self.config = config        self.layer_idx = layer_idx        self.hidden_size = config.hidden_size        self.num_heads = config.num_attention_heads        self.head_dim = self.hidden_size // self.num_heads        self.num_key_value_heads = config.num_key_value_heads        self.num_key_value_groups = self.num_heads // self.num_key_value_heads        self.is_causal = True        self.attention_dropout = config.attention_dropout        self.rope_scaling = config.rope_scaling        if (self.head_dim * self.num_heads) != self.hidden_size:            raise ValueError(                f"hidden_size must be divisible by num_heads (got `hidden_size`: {self.hidden_size}"                f" and `num_heads`: {self.num_heads})."            )        self.q_proj = nn.Linear(self.hidden_size, self.num_heads * self.head_dim, bias=True)        self.k_proj = nn.Linear(self.hidden_size, self.num_key_value_heads * self.head_dim, bias=True)        self.v_proj = nn.Linear(self.hidden_size, self.num_key_value_heads * self.head_dim, bias=True)        self.o_proj = nn.Linear(self.num_heads * self.head_dim, self.hidden_size, bias=False)    def forward(        self,        hidden_states: torch.Tensor,        position_embeddings: Optional[Tuple[torch.Tensor, torch.Tensor]] = None,  # necessary, but kept here for BC    ) -> Tuple[torch.Tensor, Optional[torch.Tensor], Optional[Tuple[torch.Tensor]]]:        bsz, q_len, _ = hidden_states.size()        query_states = self.q_proj(hidden_states)        key_states = self.k_proj(hidden_states)        value_states = self.v_proj(hidden_states)        query_states = query_states.view(bsz, q_len, -1, self.head_dim).transpose(1, 2)        key_states = key_states.view(bsz, q_len, -1, self.head_dim).transpose(1, 2)        value_states = value_states.view(bsz, q_len, -1, self.head_dim).transpose(1, 2)        cos, sin = position_embeddings        query_states, key_states = apply_multimodal_rotary_pos_emb(            query_states, key_states, cos, sin, self.rope_scaling["mrope_section"]        )        # repeat k/v heads if n_kv_heads < n_heads        key_states = repeat_kv(key_states, self.num_key_value_groups)        value_states = repeat_kv(value_states, self.num_key_value_groups)        attn_weights = torch.matmul(query_states, key_states.transpose(2, 3)) / math.sqrt(self.head_dim)        # Fix precision issues in Qwen2-VL float16 inference        # Replace inf values with zeros in attention weights to prevent NaN propagation        if query_states.dtype == torch.float16:            attn_weights = torch.where(torch.isinf(attn_weights), torch.zeros_like(attn_weights), attn_weights)        # upcast attention to fp32        attn_weights = nn.functional.softmax(attn_weights, dim=-1, dtype=torch.float32).to(query_states.dtype)        attn_weights = nn.functional.dropout(attn_weights, p=self.attention_dropout, training=self.training)        attn_output = torch.matmul(attn_weights, value_states)        if attn_output.size() != (bsz, self.num_heads, q_len, self.head_dim):            raise ValueError(                f"`attn_output` should be of size {(bsz, self.num_heads, q_len, self.head_dim)}, but is"                f" {attn_output.size()}"            )        attn_output = attn_output.transpose(1, 2).contiguous()        attn_output = attn_output.reshape(bsz, q_len, -1)        attn_output = self.o_proj(attn_output)        return attn_outputclass Qwen2MLP(nn.Module):    def __init__(self, config):        super().__init__()        self.config = config        self.hidden_size = config.hidden_size        self.intermediate_size = config.intermediate_size        self.gate_proj = nn.Linear(self.hidden_size, self.intermediate_size, bias=False)        self.up_proj = nn.Linear(self.hidden_size, self.intermediate_size, bias=False)        self.down_proj = nn.Linear(self.intermediate_size, self.hidden_size, bias=False)        self.act_fn = ACT2FN[config.hidden_act]    def forward(self, x):        down_proj = self.down_proj(self.act_fn(self.gate_proj(x)) * self.up_proj(x))        return down_projclass Qwen2RMSNorm(nn.Module):    def __init__(self, hidden_size, eps=1e-6):        """        Qwen2RMSNorm is equivalent to T5LayerNorm        """        super().__init__()        self.weight = nn.Parameter(torch.ones(hidden_size))        self.variance_epsilon = eps    def forward(self, hidden_states):        input_dtype = hidden_states.dtype        hidden_states = hidden_states.to(torch.float32)        variance = hidden_states.pow(2).mean(-1, keepdim=True)        hidden_states = hidden_states * torch.rsqrt(variance + self.variance_epsilon)        return self.weight * hidden_states.to(input_dtype)    def extra_repr(self):        return f"{tuple(self.weight.shape)}, eps={self.variance_epsilon}"class Qwen2_5_VLDecoderLayer(nn.Module):    def __init__(self, config, layer_idx: int):        super().__init__()        self.hidden_size = config.hidden_size        self.self_attn = Qwen2_5_VLAttention(config, layer_idx)        self.mlp = Qwen2MLP(config)        self.input_layernorm = Qwen2RMSNorm(config.hidden_size, eps=config.rms_norm_eps)        self.post_attention_layernorm = Qwen2RMSNorm(config.hidden_size, eps=config.rms_norm_eps)    def forward(        self,        hidden_states: torch.Tensor,        position_embeddings: Optional[Tuple[torch.Tensor, torch.Tensor]] = None,  # necessary, but kept here for BC    ) -> Tuple[torch.FloatTensor, Optional[Tuple[torch.FloatTensor, torch.FloatTensor]]]:        residual = hidden_states        hidden_states = self.input_layernorm(hidden_states)        # Self Attention        hidden_states = self.self_attn(            hidden_states=hidden_states,            position_embeddings=position_embeddings,        )        hidden_states = residual + hidden_states        # Fully Connected        residual = hidden_states        hidden_states = self.post_attention_layernorm(hidden_states)        hidden_states = self.mlp(hidden_states)        hidden_states = residual + hidden_states        return hidden_statesclass ImageEmbeddingMerger(nn.Module):    def __init__(self, config, num_layers=2, out_channel=4096, expand_ratio=4, device='cpu'):        super().__init__()        self.config = config        self.num_layers = num_layers        self.layers = nn.ModuleList([Qwen2_5_VLDecoderLayer(config, layer_idx) for layer_idx in range(num_layers)])        # 🔧 保持原始结构以兼容预训练权重        print(f"📦 ImageEmbeddingMerger配置 (修复版):")        print(f"   输入维度: {config.hidden_size}")        print(f"   中间维度: {out_channel * expand_ratio} (expand_ratio={expand_ratio})")        print(f"   输出维度: {out_channel}")        self.projector = nn.Sequential(            Qwen2RMSNorm(config.hidden_size, eps=config.rms_norm_eps),            nn.Linear(config.hidden_size, out_channel * expand_ratio),  # 保持16384            Qwen2RMSNorm(out_channel * expand_ratio, eps=config.rms_norm_eps),            ACT2FN[config.hidden_act],            nn.Linear(out_channel * expand_ratio, out_channel),            Qwen2RMSNorm(out_channel, eps=config.rms_norm_eps)        )        self.base_grid = torch.tensor([[1, 72, 72]], device=device)        self.rotary_emb = Qwen2_5_VLRotaryEmbedding(config=config, device=device)        # 🔧 显存优化配置        self.enable_chunked_processing = True        self.chunk_size = 256  # 每次处理256个tokens        self.projector_chunk_size = 64  # projector的chunk大小    def get_position_ids(self, image_grid_thw):        """        Generates position ids for the input embeddings grid.        modified from the qwen2_vl mrope.        """        batch_size = image_grid_thw.shape[0]        spatial_merge_size = self.config.vision_config.spatial_merge_size        t, h, w = (            image_grid_thw[0][0],            image_grid_thw[0][1],            image_grid_thw[0][2],        )        llm_grid_t, llm_grid_h, llm_grid_w = (            t.item(),            h.item() // spatial_merge_size,            w.item() // spatial_merge_size,        )        scale_h = self.base_grid[0][1].item() / h.item()        scale_w = self.base_grid[0][2].item() / w.item()        range_tensor = torch.arange(llm_grid_t).view(-1, 1)        expanded_range = range_tensor.expand(-1, llm_grid_h * llm_grid_w)        time_tensor = expanded_range * self.config.vision_config.tokens_per_second        t_index = time_tensor.long().flatten().to(image_grid_thw.device)        h_index = torch.arange(llm_grid_h).view(1, -1, 1).expand(llm_grid_t, -1, llm_grid_w).flatten().to(image_grid_thw.device) * scale_h        w_index = torch.arange(llm_grid_w).view(1, 1, -1).expand(llm_grid_t, llm_grid_h, -1).flatten().to(image_grid_thw.device) * scale_w        # 3, B, L        position_ids = torch.stack([t_index, h_index, w_index]).unsqueeze(0).repeat(batch_size, 1, 1).permute(1, 0, 2)        return position_ids    def forward(self, embeds, embeds_grid, ref_embeds=None, ref_embeds_grid=None):        """主前向传播函数 - 修复版"""        def print_tensor_info(tensor, name):            if tensor is not None:                print(f"   📊 {name}: {tensor.shape}, {tensor.dtype}, {tensor.device}")        print("🔄 ImageEmbeddingMerger forward pass (修复版):")        print_tensor_info(embeds, "embeds")        print_tensor_info(ref_embeds, "ref_embeds")        # 🔧 根据输入大小选择处理策略        total_tokens = embeds.shape[1]        if ref_embeds is not None:            total_tokens += ref_embeds.shape[1]        if self.enable_chunked_processing and total_tokens > self.chunk_size:            print(f"📦 使用分块处理策略 (总tokens: {total_tokens})")            return self._forward_chunked(embeds, embeds_grid, ref_embeds, ref_embeds_grid)        else:            print(f"📦 使用标准处理策略 (总tokens: {total_tokens})")            return self._forward_standard(embeds, embeds_grid, ref_embeds, ref_embeds_grid)    def _forward_standard(self, embeds, embeds_grid, ref_embeds=None, ref_embeds_grid=None):        """标准前向传播，适用于小尺寸嵌入"""        position_ids = self.get_position_ids(embeds_grid)        hidden_states = embeds        if ref_embeds is not None:            position_ids_ref_embeds = self.get_position_ids(ref_embeds_grid)            position_ids = torch.cat((position_ids, position_ids_ref_embeds), dim=-1)            hidden_states = torch.cat((embeds, ref_embeds), dim=1)        position_embeddings = self.rotary_emb(hidden_states, position_ids)        # 🔧 使用梯度检查点减少显存        for i, layer in enumerate(self.layers):            if self.training and hidden_states.requires_grad:                hidden_states = torch.utils.checkpoint.checkpoint(                    layer, hidden_states, position_embeddings, use_reentrant=False                )            else:                hidden_states = layer(hidden_states, position_embeddings)            # 在每层后清理不必要的缓存            if torch.cuda.is_available() and i < len(self.layers) - 1:                torch.cuda.empty_cache()        # 🔧 分块应用projector以减少显存峰值        hidden_states = self._apply_projector_chunked(hidden_states)        return hidden_states    def _forward_chunked(self, embeds, embeds_grid, ref_embeds=None, ref_embeds_grid=None):        """分块处理策略，适用于大尺寸嵌入 - 修复版"""        print(f"   🔄 分块处理 (chunk_size={self.chunk_size})")        # 处理目标嵌入        print("   📦 处理目标嵌入...")        target_features = self._process_embeddings_chunked(embeds, embeds_grid)        # 清理中间变量        torch.cuda.empty_cache()        if ref_embeds is not None:            # 处理参考嵌入            print("   📦 处理参考嵌入...")            ref_features = self._process_embeddings_chunked(ref_embeds, ref_embeds_grid)            # 拼接结果            print("   📦 拼接处理后的特征...")            final_features = torch.cat([target_features, ref_features], dim=1)            # 清理中间变量            del target_features, ref_features            torch.cuda.empty_cache()            return final_features        else:            return target_features    def _process_embeddings_chunked(self, embeddings, grid):        """分块处理嵌入 - 修复版"""        chunks = []        num_chunks = (embeddings.shape[1] + self.chunk_size - 1) // self.chunk_size        # 🔧 修复：预先计算完整的position_ids        full_position_ids = self.get_position_ids(grid)        for i in range(num_chunks):            start_idx = i * self.chunk_size            end_idx = min((i + 1) * self.chunk_size, embeddings.shape[1])            print(f"     处理chunk {i+1}/{num_chunks} (tokens {start_idx}:{end_idx})")            chunk = embeddings[:, start_idx:end_idx]            # 🔧 修复：为chunk提取对应的position_ids片段            chunk_position_ids = full_position_ids[:, :, start_idx:end_idx]            chunk_result = self._process_single_chunk(chunk, chunk_position_ids)            chunks.append(chunk_result)            # 清理中间变量            del chunk, chunk_result, chunk_position_ids            torch.cuda.empty_cache()        result = torch.cat(chunks, dim=1)        del chunks, full_position_ids        torch.cuda.empty_cache()        return result    def _process_single_chunk(self, chunk, chunk_position_ids):        """处理单个chunk - 修复版"""        # 🔧 修复：直接使用传入的chunk_position_ids，而不是重新计算        hidden_states = chunk        position_embeddings = self.rotary_emb(hidden_states, chunk_position_ids)        # 使用梯度检查点处理Transformer层        for layer in self.layers:            if self.training and hidden_states.requires_grad:                hidden_states = torch.utils.checkpoint.checkpoint(                    layer, hidden_states, position_embeddings, use_reentrant=False                )            else:                hidden_states = layer(hidden_states, position_embeddings)        # 分块应用projector        result = self._apply_projector_chunked(hidden_states)        # 清理        del hidden_states, position_embeddings        torch.cuda.empty_cache()        return result    def _apply_projector_chunked(self, hidden_states):        """分块应用projector，减少显存峰值"""        if hidden_states.shape[1] <= self.projector_chunk_size:            # 小张量直接处理            return self.projector(hidden_states)        print(f"     📦 分块应用projector (chunk_size={self.projector_chunk_size})")        chunks = []        for i in range(0, hidden_states.shape[1], self.projector_chunk_size):            end_idx = min(i + self.projector_chunk_size, hidden_states.shape[1])            chunk = hidden_states[:, i:end_idx]            # 应用projector            chunk_result = self.projector(chunk)            chunks.append(chunk_result)            # 清理            del chunk, chunk_result            torch.cuda.empty_cache()        result = torch.cat(chunks, dim=1)        del chunks        torch.cuda.empty_cache()        return result    def set_chunked_processing(self, enabled, chunk_size=None, projector_chunk_size=None):        """动态设置分块处理参数"""        self.enable_chunked_processing = enabled        if chunk_size is not None:            self.chunk_size = chunk_size        if projector_chunk_size is not None:            self.projector_chunk_size = projector_chunk_size        print(f"🔧 分块处理设置: enabled={enabled}, chunk_size={self.chunk_size}, projector_chunk_size={self.projector_chunk_size}")# 🔧 修复说明：# 1. 在_process_embeddings_chunked中预先计算完整的position_ids# 2. 为每个chunk提取对应的position_ids片段 (chunk_position_ids)# 3. 在_process_single_chunk中直接使用传入的chunk_position_ids# 4. 确保position_embeddings与chunk的大小完全匹配
